Vega L

Vega L is a versatile road and street light that meets the Smart City needs of the future. The luminaire is ideally suited to Scandinavian conditions in terms of design and technical features. The luminaire's smooth body construction ensures that debris does not get caught in the luminaire. Vega L is resistant to northern snow and sleet. The luminaire is designed and manufactured in Finland and meets the common Nordic quality requirements. The product is approved by the Finnish Transport Agency.

The Vega product family also includes Vega M and Vega S.

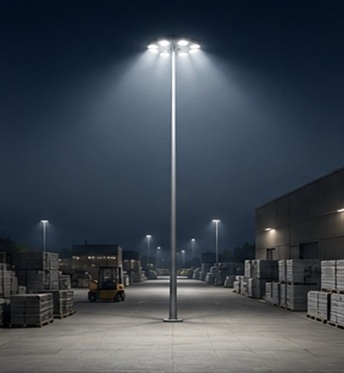

Area of use: outdoor lighting and parking
Installation: pole and wall surface

Benefits

Vega L is an energy-efficient sustainable luminaire with superior customisability. It can be customised in over a million different ways, with a wide range of power and optics options. Vega L is designed with the Smart City needs of the future in mind. The luminaire is available with Zhaga or NEMA connectors.

Applicability

The Vega L is suitable for a wide range of road and street lighting needs, including urban streets, city streets, highways and motorways.

Variants

Model	Type code	Power	Power tuning range ¹⁾	Luminous flux	Luminaire efficacy	Lifetime	Operating temperature	Optical safety distance ²⁾
VEGA L	GLVL113(B	119 W	17-100%	19670 lm	165 lm/W	L98, C10 100 000 h	-40 - +45°C	3.9 m
VEGA L	GLVLS117(A	123 W	24-100%	18570 lm	151 lm/W	L98, C10 100 000 h	-40 - +45°C	4.0 m
VEGA L	GLVL129(B	137W	17-100%	22480 lm	164 lm/W	L98, C10 100 000 h	-40 - +45°C	4.2 m
VEGA L	GLVLS140(A	149 W	14-100%	22290 lm	149 lm/W	L98, C10 100 000 h	-40 - +40°C	4.4 m
VEGA L	GLVL145(B	153 W	10-100%	25290 lm	165 lm/W	L98, C10 100 000 h	-40 - +45°C	4.4 m
VEGA L	GLVL161(B	172 W	10-100%	28100 lm	164 lm/W	L98, C10 100 000 h	-40 - +40°C	4.7 m
VEGA L	GLVL177(B	187 W	10-100%	30910lm	165 lm/W	L98, C10 100 000 h	-40 - +40°C	4.9 m
VEGA L	GLVL193(B	206 W	10-100%	33720 lm	164 lm/W	L98, C10 100 000 h	-40 - +35°C	5.1 m
VEGA L	GLVLS198(A	213 W	10-100%	30190lm	142 lm/W	L98, C10 100 000 h	-40 - +30°C	5.1 m
VEGA L	GLVL231(B	250 W	10-100%	38330 lm	154 lm/W	L98, C10 100 000 h	-40 - +25°C	5.4 m
VEGA L	GLVL253(B	271 W	10-100%	42160 lm	156 lm/W	L98, C10 100 000 h	-40 - +25°C	5.6 m
VEGA L	GLVL276(B	296 W	10-100%	45990 lm	156 lm/W	L98, C10 100 000 h	-40 - +25°C	5.9 m

Dimensions

Model	Type code	Length (L)	Height (H)	Width (W)	Weight
VEGA L	GLVL113(B	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVLS117(A	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVL129(B	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVLS140(A	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVL145(B	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVL161(B	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVL177(B	690 mm	75 mm	360 mm	11,0 kg
VEGA L	GLVL193(B	690 mm	75 mm	360 mm	12,0 kg
VEGA L	GLVLS198(A	690 mm	75 mm	360 mm	12,0 kg
VEGA L	GLVL231(B	690 mm	75 mm	360 mm	12,0 kg
VEGA L	GLVL253(B	690 mm	75 mm	360 mm	12,0 kg
VEGA L	GLVL276(B	690 mm	75 mm	360 mm	12,0 kg

Comments on

Rated luminous flux is an indicative LED luminous flux and is based on LED manufacturer's specifications at 4000K colour temperature and CRI70
colour rendering. The actual luminous flux of the luminaire depends on the environmental conditions (e.g. temperature and pollutants), the LED's
LED colour temperature, colour rendering and the optical efficiency of the luminaire. All values at +25°C ambient temperature
with light distribution V11 or 07. For luminous flux +-10% tolerance, for power +-10% tolerance.
1) Adjustment range differs from these values if the luminaire power is optimised. ±10% tolerance in the adjustment range.
2) The luminaire shall be positioned so that prolonged viewing of the luminaire cannot be assumed to occur within the optical safety distance.
closer than the optically safe distance.
Kuvankäsittelyä

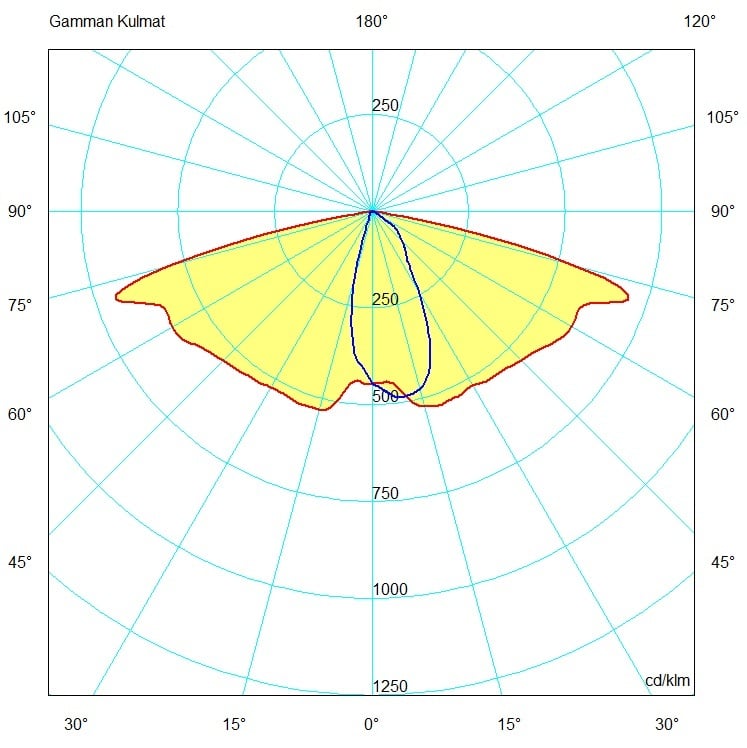

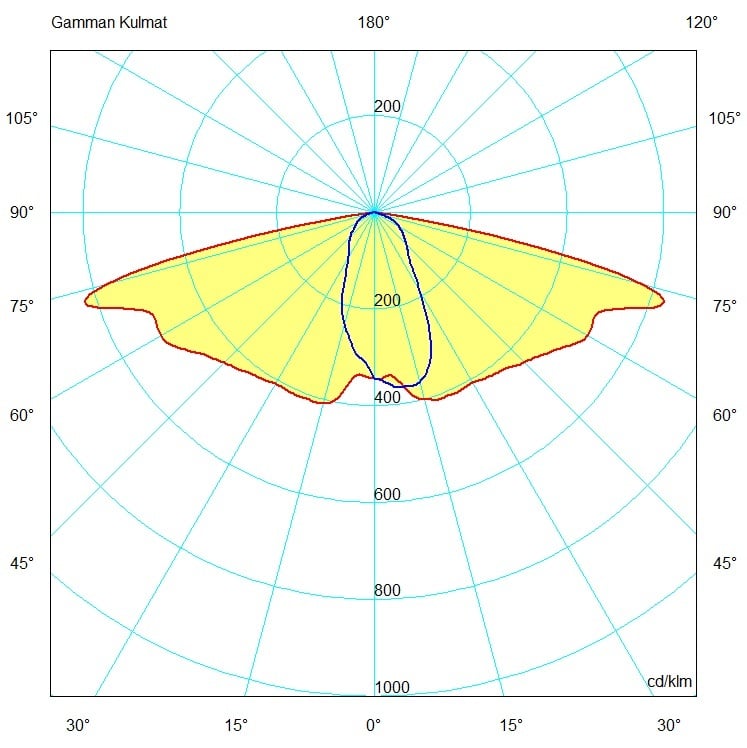

A) Optical family A (e.g. 07)
B) Optical family B (e.g. V07)
Luminous flux coefficients:
LED 3000K CRI70 = 0,91
LED 5000K CRI70 = 1,00

Colour temperature:
3000 K, 4000 K, 5000 K ⁽¹

Colour rendering index:
RA≥ 70

Light source protection:
Tempered glass

Enclosure class:
IP66

Impact resistance:
IK08

Input voltage:
220-240 Vac

Frequency:
50-60 Hz

PF:
>0.95

THD:
<10%

Overvoltage protection:
10kV L/N-Ground & 6kV L-N

Connection:
Internal connection flange of the luminaire, optionally with installation cable.

Manoeuvrability:
ON/OFF, AstroDIM, DALI 2)

Colour:
Standard RAL9006, optional other standard RAL shades

Body material:
Aluminium

Warranty:
8 years, STUL warranty 2 years from delivery - not applicable to steering components

Accessories (installation):
3608220 Pipe bracket, 5206062 T-branch, 5205037 Pipe adapter, 3608101 Ceiling bracket, 3608061 Wall bracket, 9905253 Vega exhaust bracket, 9910082 Post bracket

Accessories (other):
Protection class II assembly

Notes:
1) Colour coordinates start value SDCM 5 and end value SDCM 5

2) GLVLS140, GLVLS198, GLVL193 two DALI addresses
