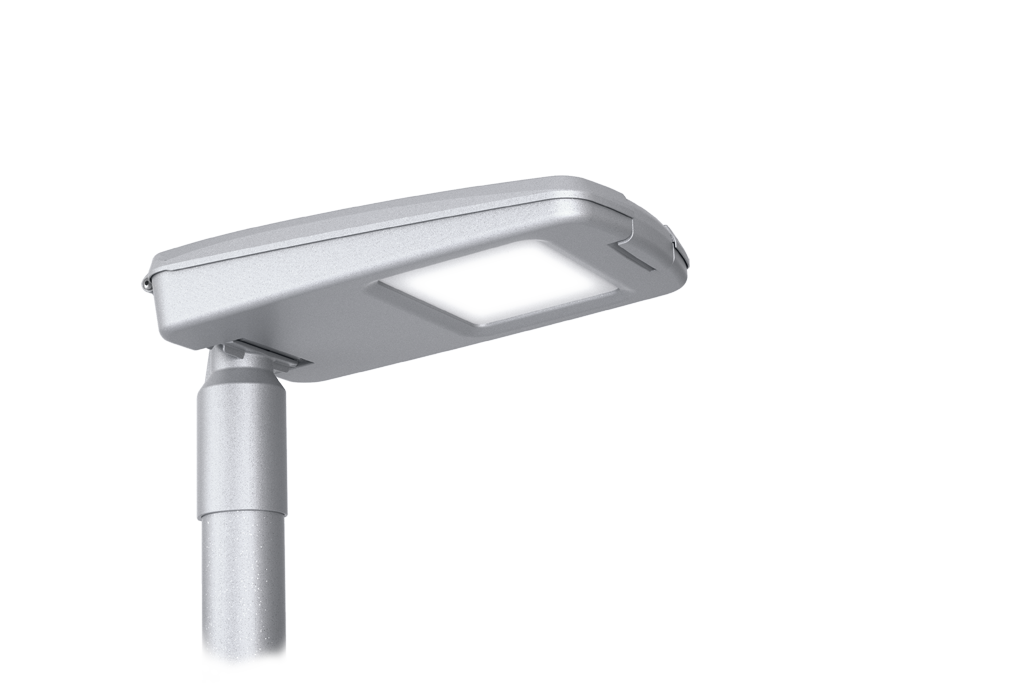

Sirius_S_Gen2_product_image_1

Sirius S Gen2

Sirius S Gen2 is the smallest version of the energy-efficient street light family. The redesigned Sirius family has been designed with an emphasis on suitability for varying weather conditions. The family features a new uniform and sleek design that is easy to keep clean. The timeless Scandinavian design of Sirius is well suited to environments built in different eras. Sirius combines good looks, durable materials and practicality. Sirius S Gen2 luminaires are suitable for a variety of needs in urban and residential streets, light traffic routes, parks and outdoor paths. The product is approved by the Finnish Public Roads Administration.

The Sirius product family also includes Sirius Flood Gen2 and Sirius M Gen2.

  • Avainlippu

Area of use: sports facilities, parking and outdoor lighting
Installation: ceiling, pole and wall surface

Contact us Downloadable files

Benefits

A reliable family of outdoor luminaires with a clear and coherent design language, from park corridors to the streets. High IP66 rating combined with impact resistant IK09 luminaire construction. A wide range of different light distributions to cover a variety of
lighting needs and column spacing. The product combines low glare values with low life cycle costs. Service factor compensation as a standard feature.

Applicability

Footpaths, cycle paths, parks, residential streets and outdoor trails. The luminaire is also ideal for area and facade lighting.

Variants

Model Type code Power Luminous flux Luminaire efficacy Lifetime Operating temperature Optical safety distance 1)
SIRIUS S GEN2 GLS2G2S-20, GLS2G2S4-20 23 W 3050 lm 139 lm/W L98, C10 100 000 h -40 - +45°C -
SIRIUS S GEN2 GLS2G2S-40, GLS2G2S4-40 44 W 5490 lm 135 lm/W L98, C10 100 000 h -40 - +45°C 2,3 m (1
SIRIUS S GEN2 GLS2G4S-35 36 W 5620 lm 158 lm/W L98, C10 100 000 h -40 - +45°C -
SIRIUS S GEN2 GLS2G4S-65 67 W 9840 lm 148 lm/W L98, C10 100 000 h -40 - +35°C 2,3 m (1

Dimensions

Model Type code Length (L) Height (H) Width (W) Weight
SIRIUS S GEN2 GLS2G2S-20, GLS2G2S4-20 402 mm 75 mm 235 mm 4,3 kg
SIRIUS S GEN2 GLS2G2S-40, GLS2G2S4-40 402 mm 75 mm 235 mm 4,3 kg
SIRIUS S GEN2 GLS2G4S-35 402 mm 75 mm 235 mm 4,3 kg
SIRIUS S GEN2 GLS2G4S-65 402 mm 75 mm 235 mm 4,3 kg
Comments on

All values at +25°C ambient temperature @ 4000K CCT with S02 light distribution, +-10% tolerance in flux, +-10% in power
tolerance.
ULOR=0
1) The luminaire must be positioned so that prolonged viewing of the luminaire cannot be expected to occur closer than 2.3m
Luminous flux coefficients:
LED 3000K CRI70 = 0,91
LED 5000K CRI70 = 1,00

Overview

Colour temperature:
3000 K, 4000 K, 5000 K

Colour rendering index:
RA≥ 70

Enclosure class:
IP66

Impact resistance:
IK09

Supply voltage:
120-277 Vac

Frequency:
50-60 Hz

PF:
>0.9

THD:
<10%
Overvoltage protection:
10kV L/N-Ground & SD-Ground

Connection:
Internal connection flange of the luminaire (optional installation cable)

Controllability:
ON/OFF, AstroDIM, DALI

Colour:
Standard RAL9006, optional other standard RAL colours.

Body material:
Recycled aluminium

Guarantee:
8 years, STUL warranty 2 years from delivery - not applicable to control components

Optional accessories (installation):
3608220 Pipe bracket, 5206062 T-branch, 5205037 Pipe adapter, 3608101 Ceiling bracket, 3608061 Wall bracket

Accessories (other):
Protection class II assembly

Notes:
The luminaire must be positioned so that prolonged viewing of the luminaire cannot be expected to occur from closer than 2,3m.

Attachments and downloads

Light distribution

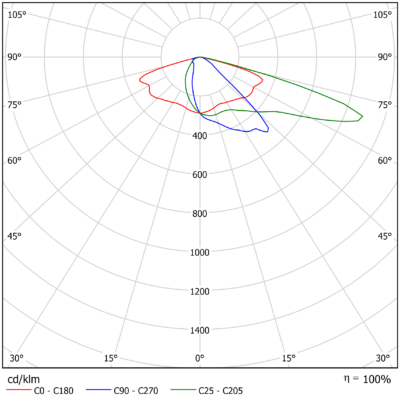

SIRIUS S 01 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_01_1v1_40W_asti

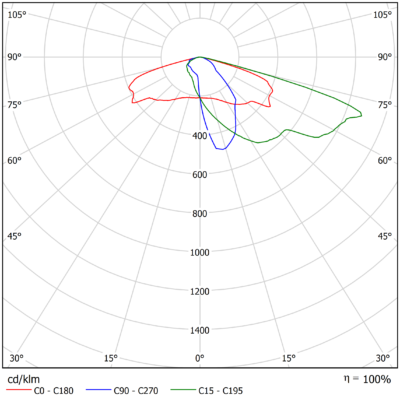

SIRIUS S 02 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_02_1v1_40W_asti

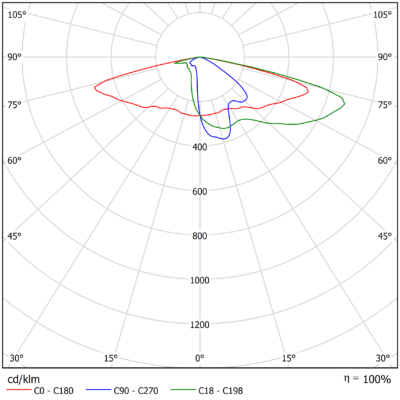

SIRIUS S 07 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_07_1v1_40W_asti

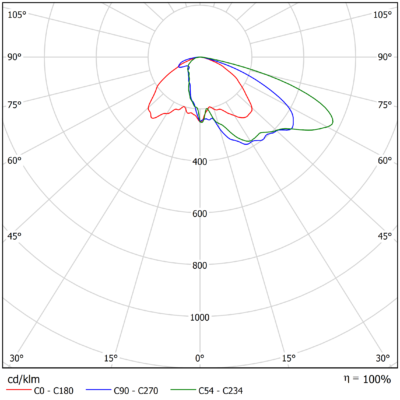

SIRIUS S 08 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_08_1v1_40W_asti

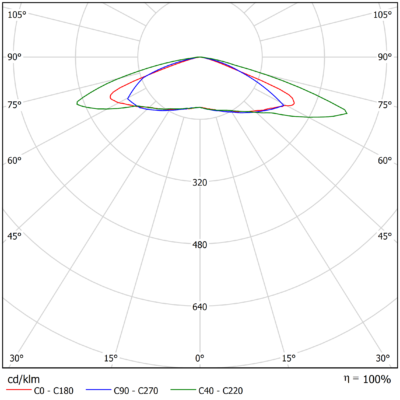

SIRIUS S 09 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_09_1v1_40W_asti

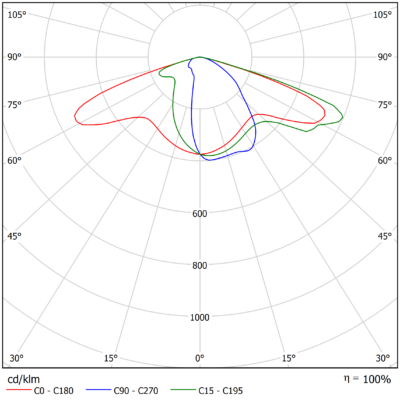

SIRIUS S 13 1v1 up to 40W Sirius_S_G2_Light-Distribution_Image_13_1v1_40W_asti

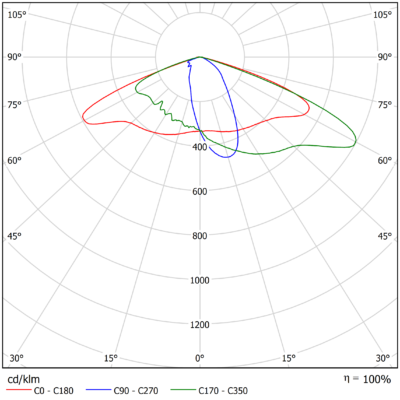

SIRIUS S S02 1v1 Sirius_S_G2_Light-Distribution_Image_S02_1v1

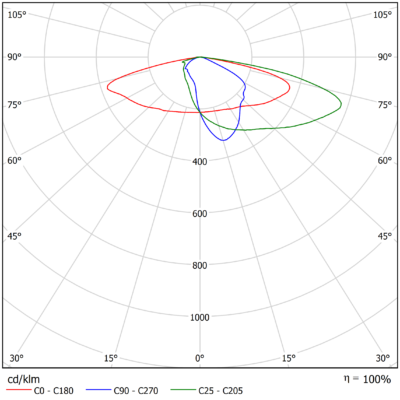

SIRIUS S S07 1v1 Sirius_S_G2_Light-Distribution_Image_S07_1v1

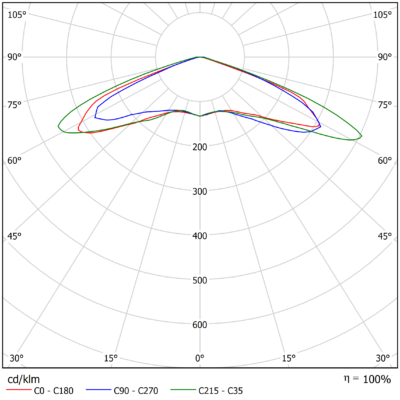

SIRIUS S S09 1v2 Sirius_S_G2_Light-Distribution_Image_S09_1v2

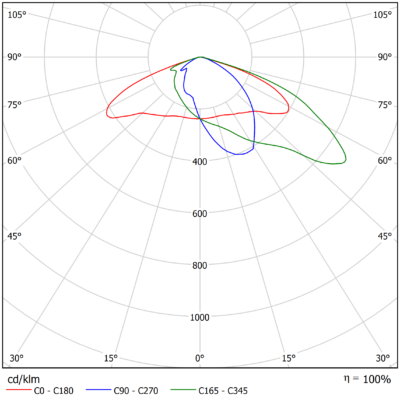

SIRIUS S S11 1v2 Sirius_S_G2_Light-Distribution_Image_S11_1v2

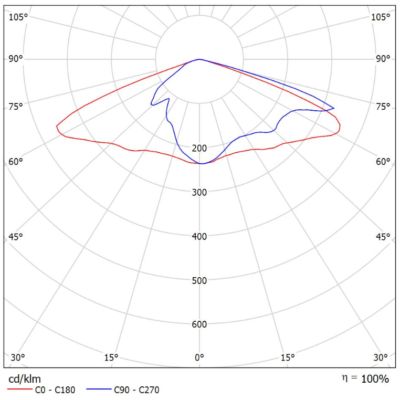

SIRIUS S S14 1v1 Sirius_S_G2_Light-Distribution_Image_S14_1v1

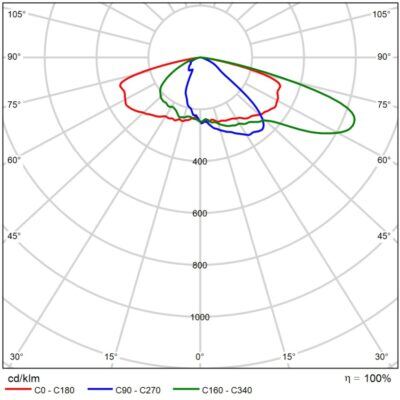

SIRIUS S S19 Sirius_S_G2_Light-Distribution_Image_S14

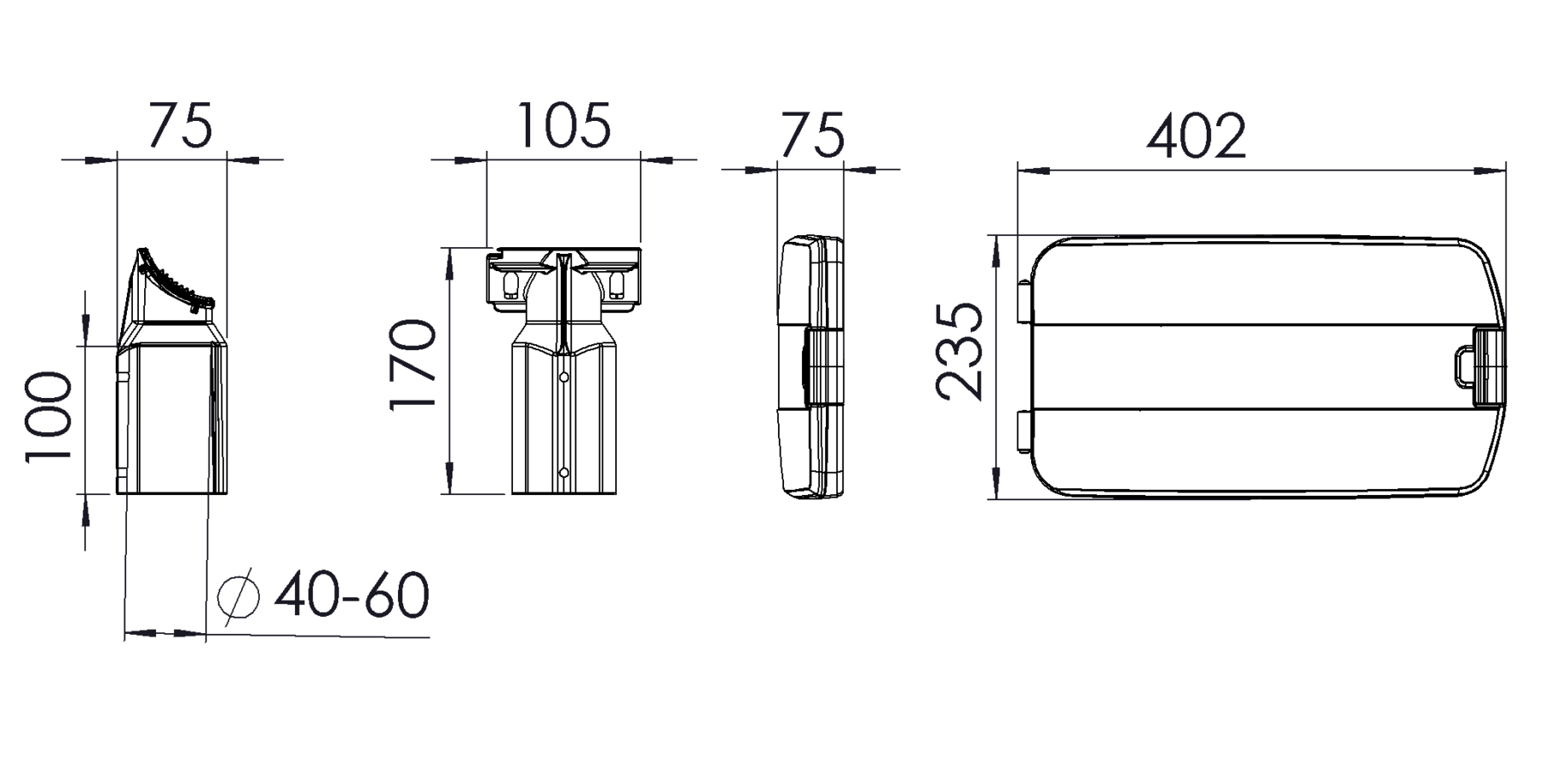

Dimensions
Sirius_S_G2_Dimensional_Drawing_Image

Brackets
3608220 Pipe clamp 3608220 Tube bracket
5206062 T-haara 5206062 T-adapter
5205037 Pipe adapter 5205037 Pole adapter diam 76 mm - 60 mm
3608101 Ceiling bracket 3608101 Ceiling bracket
3608061 Wall bracket 3608061 Wall bracket

Circuit breakers
B10 B16 B20 C10 C16
SIRIUS 2S GEN2, SIRIUS 4S GEN2 < 45 W 10 17 20 16 27
SIRIUS 4S GEN2 > 44 W 7 12 14 11 18
