Polaris S — LED street luminaire for demanding urban environments

Polaris S Urban is inspired by the brightness of the North. Cut-off light distributions, silver-free Ceramic LED technology and Zhaga Book 15 serviceability make it an exceptional choice for demanding urban environments — from parks to busy streets.

IP66, IK08, luminous efficacy 147–167 lm/W and 5-year warranty (option 8 yr) and body made from recycled aluminium ensure a long lifecycle in demanding Nordic conditions. Easy installation on pole, wire suspension or thread installation — always factory-wired. Meets the joint Nordic outdoor lighting quality requirements.

Favorite

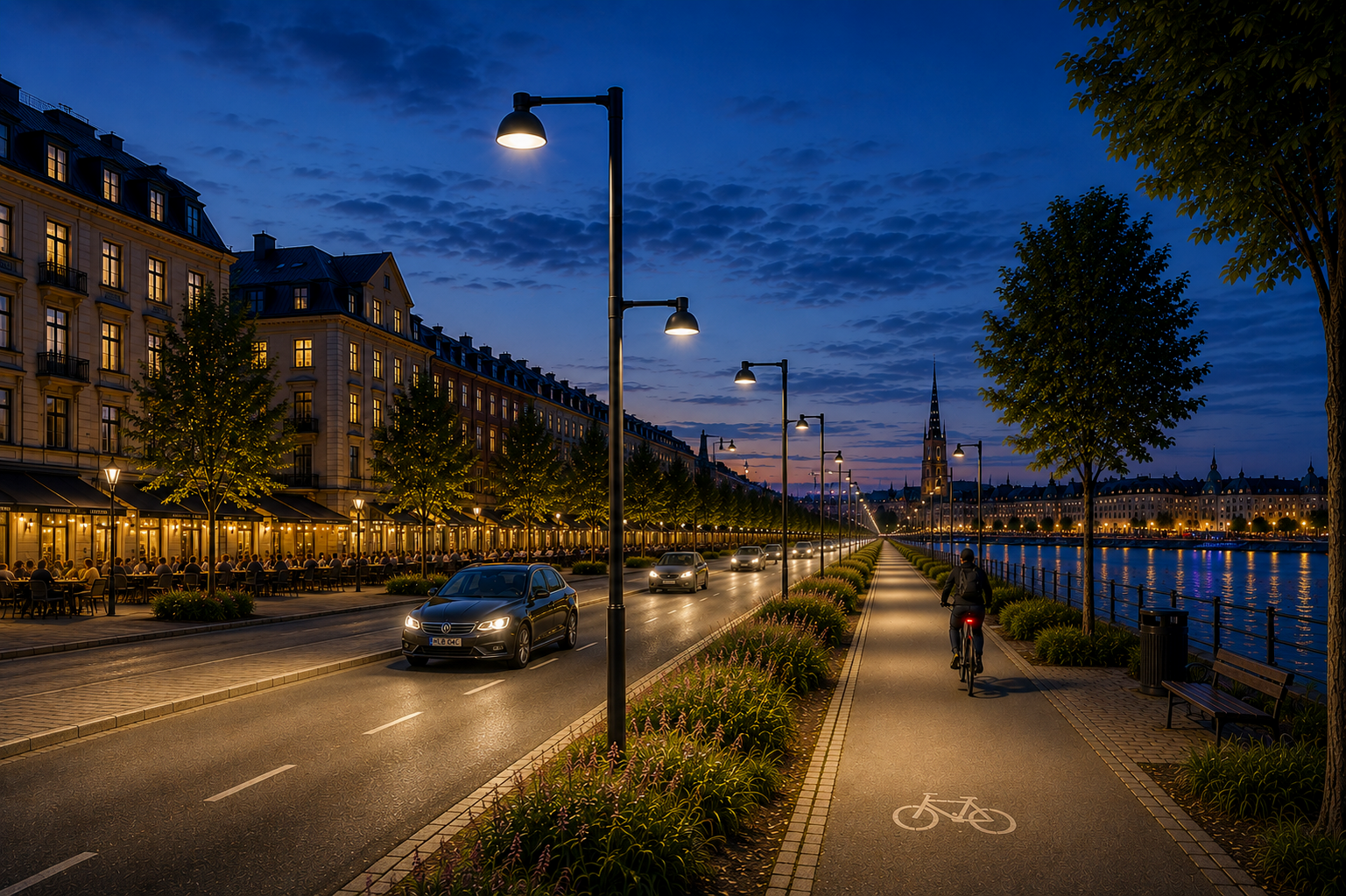

Application area: Polaris S is suitable for parks, pedestrian paths, cycle paths, streets, traffic arrangements and area lighting. City. Versatile light distributions — especially Cut-off light distributions — ensure excellent light control, minimise glare and the sky glow phenomenon. Nature. Amber II (Spectre). Less than 1% blue light. Supports biodiversity — does not disturb nocturnal animals or insects. Dual-channel. White + Amber 50/50. White and amber in the same luminaire. Efficient daytime profile, nature-friendly night profile.

Installation: Polaris S can be installed on a pole (horizontal or vertical position), as a wire suspension or 3/4" thread installation. The luminaire is always delivered factory-wired — no special tools required. The luminaire is available with one upper and/or one lower Zhaga connector (Zhaga Book 18) for smart systems.

Benefits

Premium Ceramic LED technology: Silver-free Ceramic LED diodes ensure the longest lifecycle and pure, stable light quality.

Serviceability and future-proofing: Standardised Zhaga Book 15 LED boards and optics, and an easily replaceable driver conforming to Zhaga Book 13 standard.

Finnish quality: Designed, developed and manufactured in Finland to the most demanding Nordic standards. Always factory-wired and carefully tested.

Sustainable and ecological construction: Body made from recycled aluminium ensures minimal carbon and nature footprint. Designed for reuse.

Nordic durability: Designed for demanding conditions — excellent weather resistance, energy efficiency and longevity. Meets the joint Nordic outdoor lighting quality requirements.

Applicability

Polaris S Urban is suitable for parks and green areas, pedestrian and cycle paths, streets and area lighting. Polaris is also suitable for illuminating streets, roads and collector roads.

Variants

Model	Type code	Power	Power tuning range ¹⁾	Luminous flux	Luminaire efficacy	Lifetime	Operating temperature
Polaris S	GLPOS1136	11-36 W	10-100%	max. 5538 lm	161 lm/W	L90B10 >100 000h, C10 100 000h	-40 - +35°C
Polaris S	GLPOS3779	37-79 W	10-100%	max. 11658 lm	164 lm/W	L90B10 >100 000h, C10 100 000h	-40 - +35°C
Polaris S (Amber 2C)	GLPOS1136	11-36W	10-100%	max. 5626 lm	136 lm/W	L90B10 >100 000h, C10 100 000h	-40 - +35°C

Dimensions

Model	Type code	Length (L)	Height (H)	Diameter (D)	Weight	Wind surface area
Polaris S	GLPOS1136	340 mm	160 mm	340 mm	4,0kg	454 cm²
Polaris S	GLPOS3779	340 mm	160 mm	340 mm	4,0kg	454 cm²
Polaris S (Amber 2C)	GLPOS1136	340 mm	160 mm	340 mm	4,0kg	454 cm²

Comments on

Notes: Nominal luminous flux is based on data provided by the LED manufacturer at 4000 K colour temperature and CRI70 colour rendering, at +25 °C ambient temperature. The actual luminous flux of the luminaire depends on environmental conditions (e.g. temperature and impurities), LED colour temperature, colour rendering and the optical efficiency of the luminaire. Tolerance of ±10% in luminous flux and ±10% in power. The luminaire is CLO-compensated.

The luminaire shall be positioned so that prolonged viewing of the luminaire cannot be assumed to occur closer than the optical safety distance. Luminaire ULOR=0. 1) The minimum power control range is approximately 3–20 %, depending on the driver and the set output current (200–1050 mA).

Overview

Color Temperature: Amber II (Spectre), 3000K, 4000K
Color Rendering Index: CRI ≥ 70, CRI ≥ 80
Color consistency: SDCM ≤5
LED type: Ceramic LED (silver free)
LED PCB material: Aluminium
IEC 60068-2-43 LED corrosion test: H2S 15ppm H2S 40°C/90% r.H. Light >98%
Optics: PMMA
Light Source Protection: Tempered glass
Enclosure protection rating: IP66
Impact resistance: IK08
Air impurity and moisture filter valve: Goretex condensation and pressure equalisation valve
Luminaire corrosion resistance class: C3H
Supply Voltage: 220-240 Vac
Frequency: 50-60 Hz
Power Factor: PF > 0,90
THD: THD < 20%
Surge Protection: 10kV L/N-Ground & SD-Ground
Protection class: Protection class I or protection class II
Connection: 3- or 5-pin factory-installed rubber or MMJ cable
Dimming / Control: DALI 2 D4i, AstroDIM, Casambi
Number of DALI addresses: 1 pc or Dual-channel DT 6 2 pcs
Zhaga D4i: Yes
Number of Zhaga connectors: 1 or 2
Zhaga book compatibility: Zhaga Book 15, 13, 18, 25
Finnish trasport infrastructure agency approval: Yes
Dark sky: Yes, ULOR 0%
Biodiversity: Amber II (spectre )
Circular economy: Recycled aluminium
Repairability: Yes
ReUse: Yes
Environmental impact information: No
Luminiare life time: L98 B10/100 000h C10
Color: Standard RAL7024, other RAL colours as option
Housing Material: Recycled aluminium
Warranty: 5 years or 8 years
CLO: Yes
Accessories (Installation): 9908422 Vertical tube bracket
9908421 Horizontal tube bracket
Wire bracket
9910064 Thread bracket
accessories (other): Protection class II configuration, separate surge protector 20kV and Dual Channel White-Amber configuration (2C model)

Attachments and Downloads

Light distribution

Wide

24 Shade BLK Full Cutoff

Medium-wide

01 (Amber II)

01 Shade BLK full cutoff

11 Shade BLK Full Cutoff

19 Shade BLK Full Cutoff

Narrow

02 (Amber II)

02 Shade BLK Full Cutoff

07 (Amber II)

23 Shade BLK Full Cutoff

Inverted Optics KO

KO1 (Amber II)

KO2 (Amber II)

KO12

Extra wide

24M (Middle)

Wide wire

01M (Middle - Amber II)

07M (Middle - Amber II)

Narrow

23M (Middle)

27 (Middle)

Pedestrian crossing

360

09 (Amber II coming soon)

Area

08 Shade BLK Full Cutoff

14 (Amber II coming soon)

Dimensions

Polaris S (Wind area 454 cm²)

Brackets

9908421 Horizontal Pipe Bracket

9908481 5° Horizontal Pipe Bracket

E 1500164 Polaris parking bracket (Zhaga connector on top)

5205037 Pole adapter, diameter 76 mm -> 60 mm

9908422 Vertical Pipe Bracket

E1500261 Wire Bracket

3/4-inch Threaded Bracket

3-4 Thread Bracket Polaris Mini Suspension Bracket

5206062 T-adapter

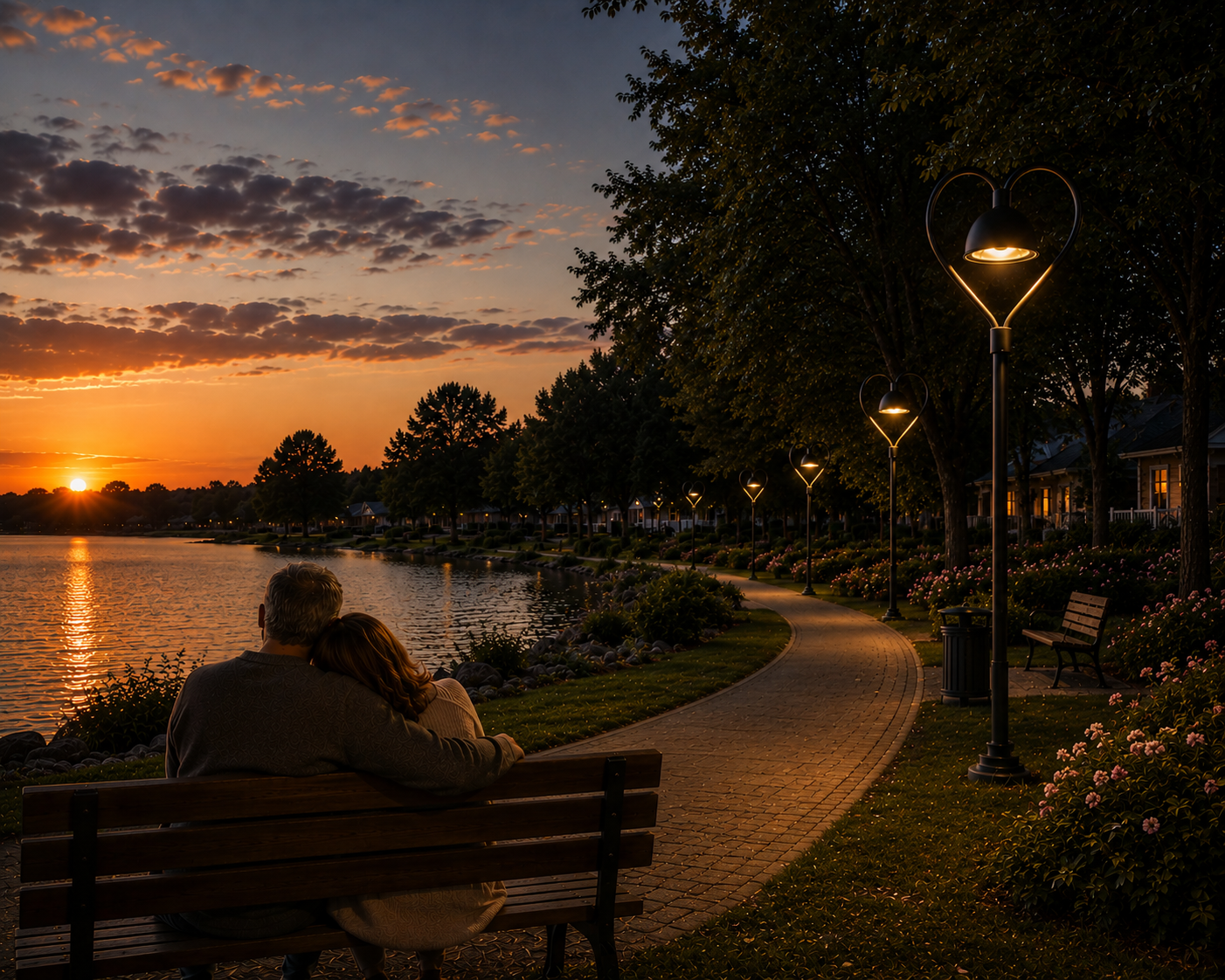

Park Bracket - Heart

Project-specific idea: special brackets

Bracket Polaris-Alula Idea 1

Bracket Polaris-Alula Idea 2

Bracket Polaris-Alula Idea 5

Bracket Polaris-Alula Idea 7

Circuit breakers

	B10	B16	B20	C10	C16	C20
11-36 W	13	21	26	22	35	44
37- 79 W	8	13	16	13	21	27
