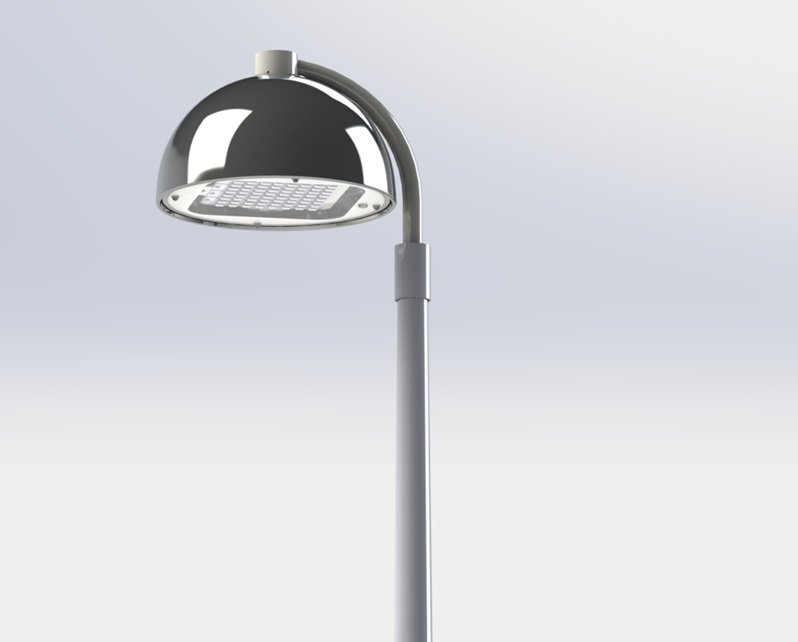

Polaris

Polaris is inspired by the glory of the North. Polaris' timeless, clean-lined and Scandinavian design fits well into environments built in different eras. Polaris combines glare-free light, elegant looks, high quality components and easy installation.

Area of use: outdoor lighting
Installation: pole

Benefits

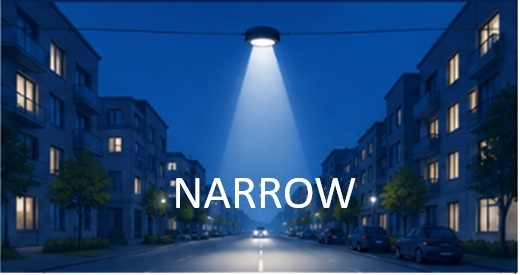

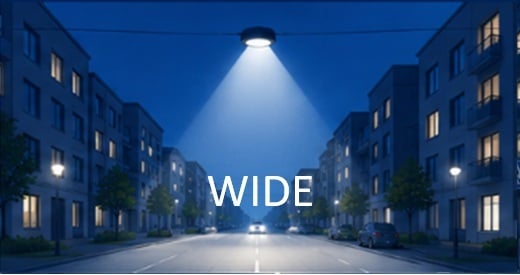

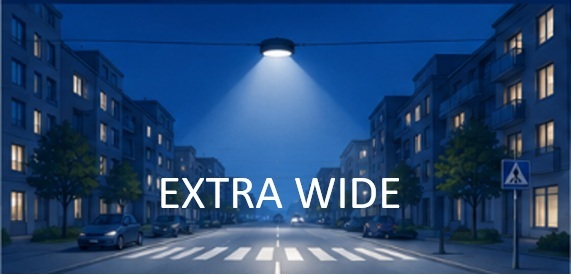

Polaris' excellent energy efficiency combined with versatile light distribution features ensure low life cycle costs for a wide range of lighting needs. Several different wattage versions of the luminaire are available. Polaris has been designed with special attention to its installability and is always supplied with an installation cable, minimising the number of wiring steps required for installation. Polaris offers a comprehensive range of mounting options from wire suspension to pole mounting.

Applicability

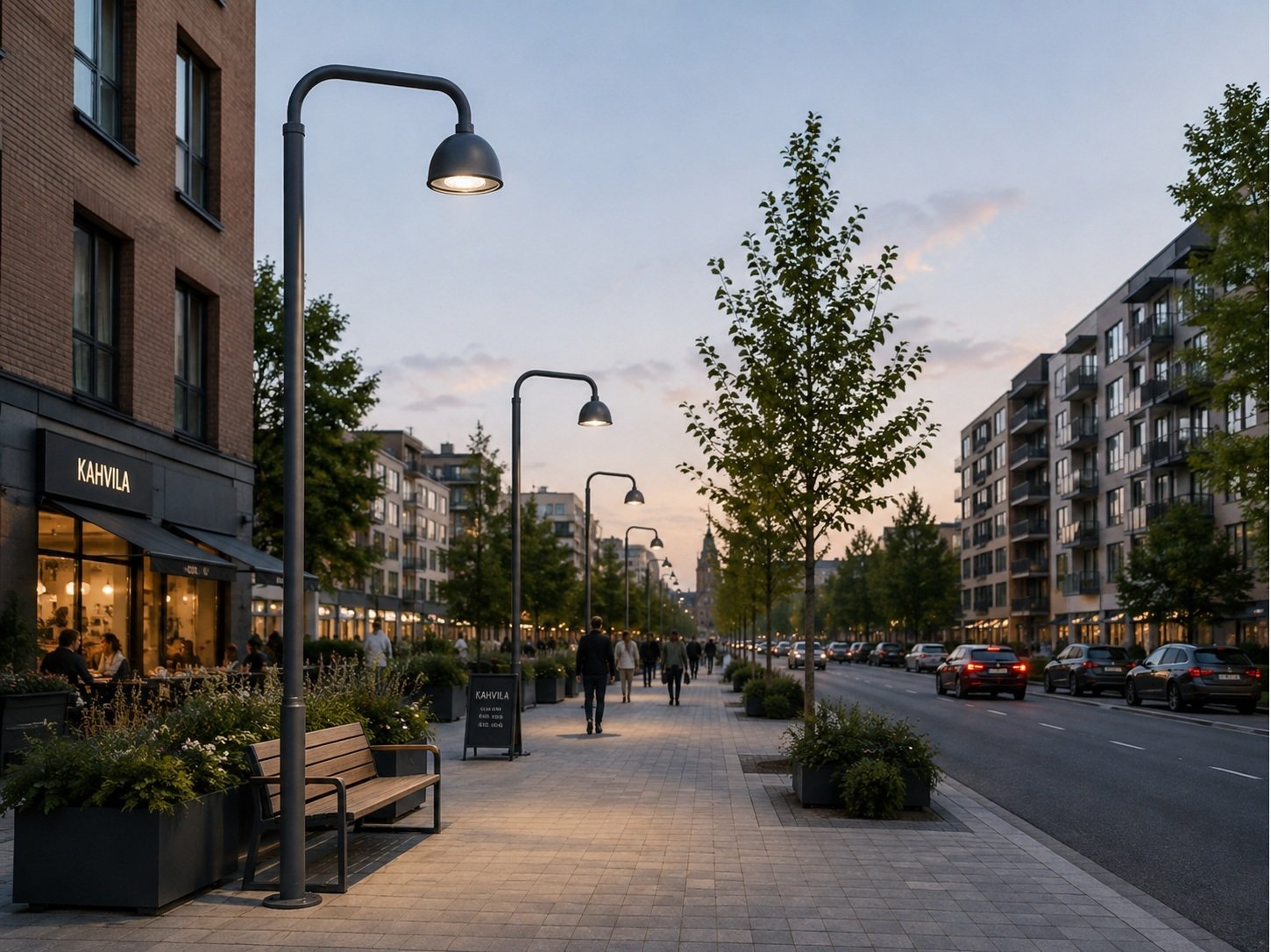

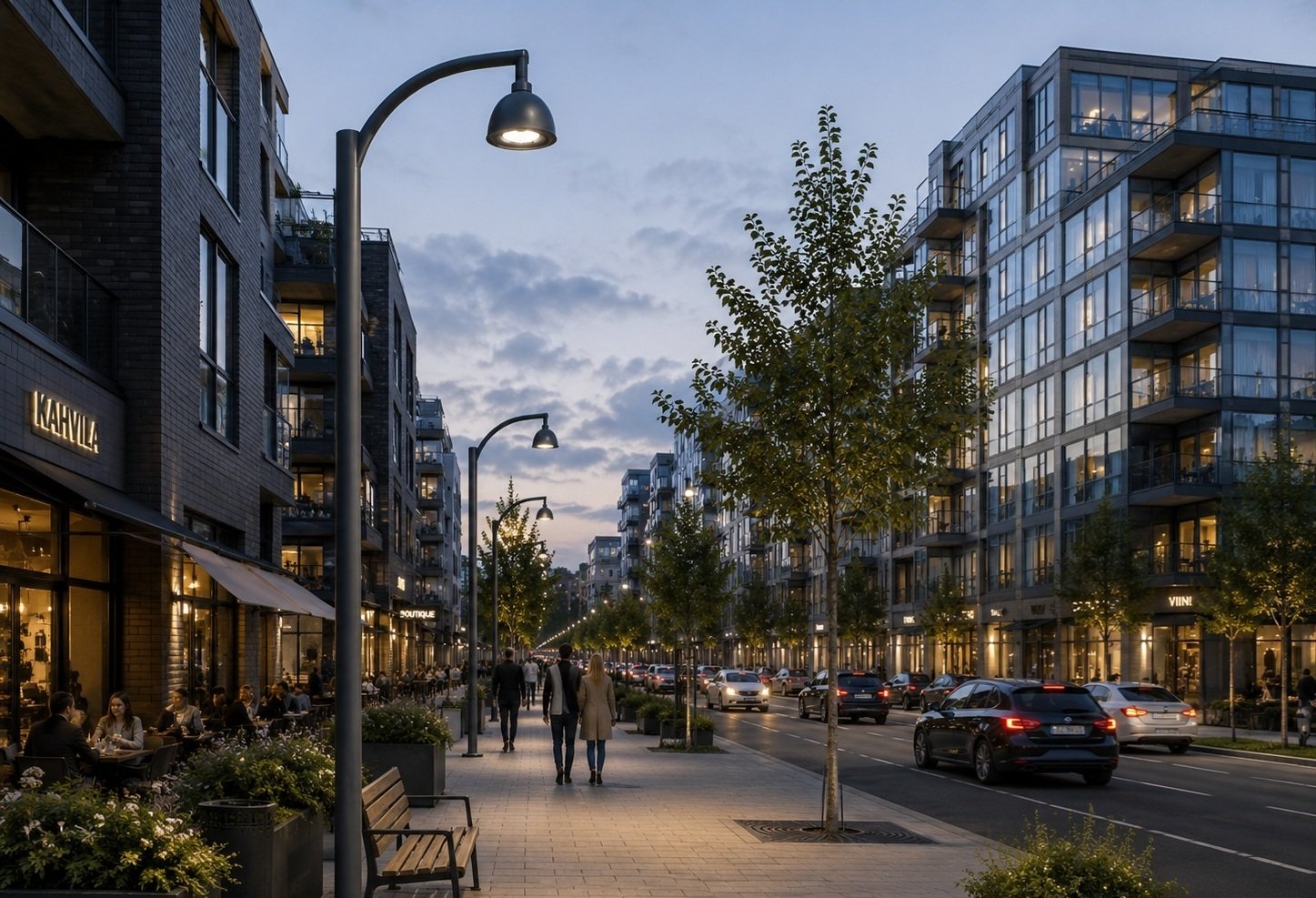

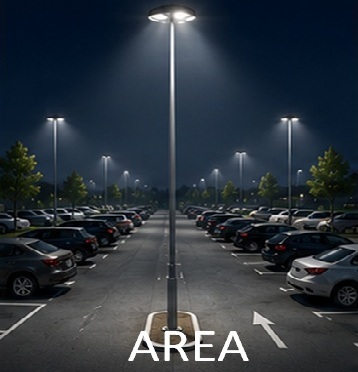

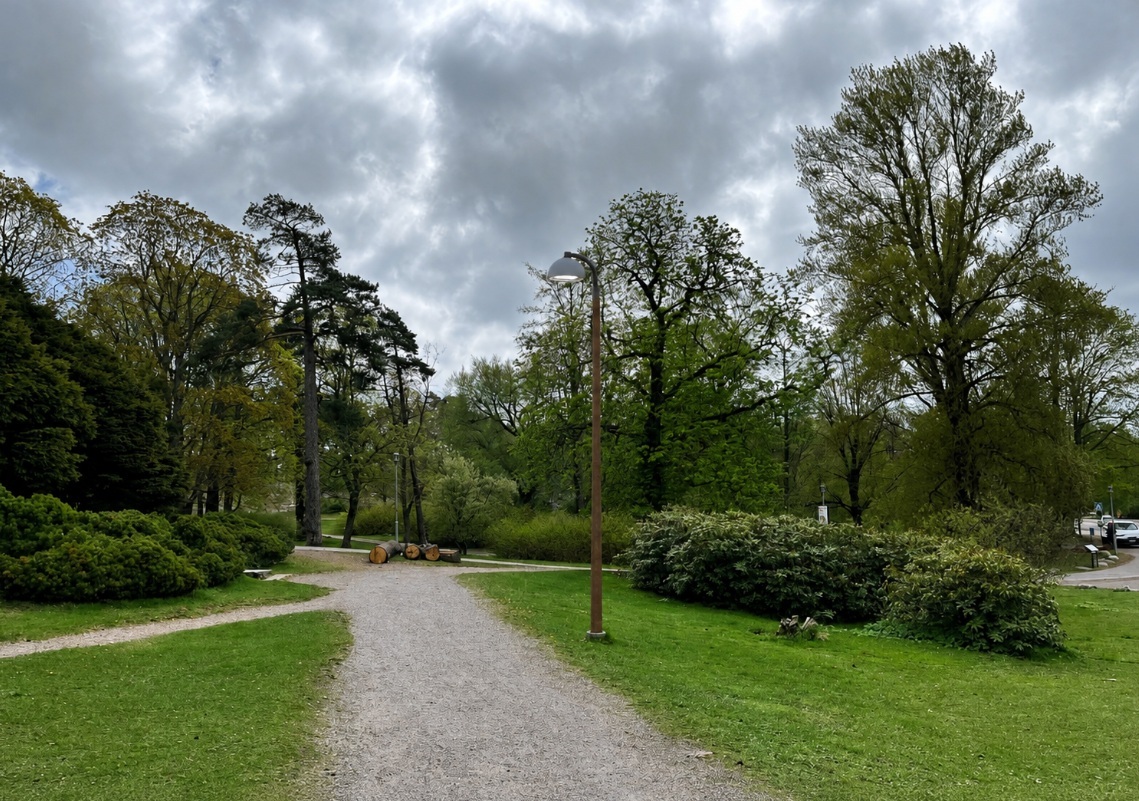

Polaris is suitable for a wide range of street and area lighting needs, including streets, roads, thoroughfares and parks.

Variants

Model	Type code	Power	Luminous flux	Luminaire efficacy	Lifetime	Operating temperature
Polaris 15W	GLPO015(A	15 W	2040 lm	144 lm/W	L98, C10 100 000 h	-40 - +55°C
Polaris 25W	GLPO025(A	25 W	3590 lm	155 lm/W	L98, C10 100 000 h	-40 - +50°C
Polaris 34W	GLPO034(A	34 W	5110 lm	155 lm/W	L98, C10 100 000 h	-40 - +45°C
Polaris 41W	GLPO041(A	41 W	6130 lm	155 lm/W	L98, C10 100 000 h	-40 - +40°C
Polaris 52W	GLPO052(A	53 W	8170 lm	155 lm/W	L98, C10 100 000 h	-40 - +40°C
Polaris 63W	GLPO063(A	63 W	9710 lm	153 lm/W	L98, C10 100 000 h	-40 - +30°C
Polaris 75W	GLPO075(A	78 W	11540 lm	148 lm/W	L98, C10 100 000 h	-40 - +25°C
Polaris 87W	GLPO087(A	91 W	13120 lm	145 lm/W	L98, C10 100 000 h	-40 - +25°C
Polaris 105W	GLPO105(B	113 W	17890 lm	158 lm/W	L98, C10 100 000 h	-40 - +35°C
Polaris 120W	GLPO120(B	128 W	20140 lm	158 lm/W	L98, C10 100 000 h	-40 - +25°C

Dimensions

Model	Type code	Length (L)	Height (H)	Diameter (D)	Weight
Polaris 15W	GLPO015(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 25W	GLPO025(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 34W	GLPO034(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 41W	GLPO041(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 52W	GLPO052(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 63W	GLPO063(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 75W	GLPO075(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 87W	GLPO087(A	450 mm	245 mm	450 mm	6,3 kg
Polaris 105W	GLPO105(B	450 mm	245 mm	450 mm	7 kg
Polaris 120W	GLPO120(B	450 mm	245 mm	450 mm	7 kg

Comments on

Rated luminous flux is indicative of LED luminous flux and is based on LED manufacturer's specifications at 4000K colour temperature and CRI70 colour rendering. The actual luminous flux of the luminaire depends on the ambient conditions (e.g. temperature and pollutants), the LED
LED colour temperature, colour rendering and the optical efficiency of the luminaire. All values at +25°C ambient temperature with P11 or 07 luminous flux, +-10% tolerance in luminous flux, +-10% tolerance in power
A) Optical family A (e.g. 07)
B) Optical family B (e.g. P07)
Luminous flux coefficients:
LED 3000K CRI70 = 0,91
LED 5000K CRI70 = 1,00

Colour temperature:
3000 K, 4000 K, 5000 K

Colour rendering index:
RA≥ 70, 80

Optics:
Lens optics

Light source protection:
Tempered glass

Enclosure class:
IP66.

Impact resistance:
IK08

Input voltage:
220-240 Vac

Frequency:
50-60 Hz

Overvoltage protection:
10kV L/N-Ground & SD-Ground

Connection:
Connecting cable

Manoeuvrability:
AstroDIM, C2 Lumo, DALI, On/off

Colour:
Standard RAL9010, optional other standard RAL colours

Body material:
Aluminium

Warranty:
5 years, STUL warranty 2 years from delivery - not for steering components

Accessories (installation):
9908422 Vertical tube bracket, 9908421 Horizontal tube bracket, Wire bracket, 9910064 Threaded bracket

Accessories (other):
NEMA connector, C2-SMART LUMO, Capelon LC-60D, Cable mount chainability solution, Protection Class II assembly
