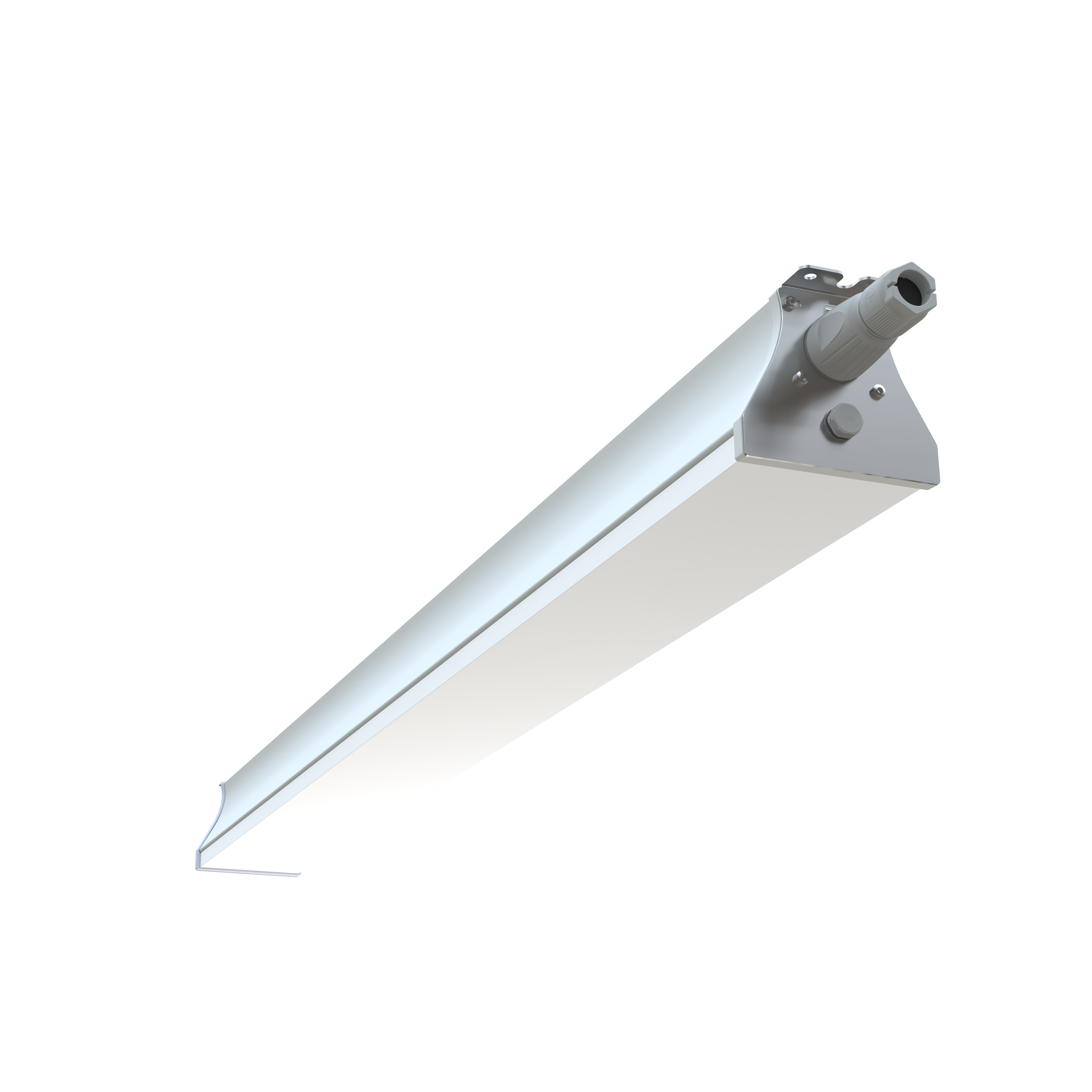

Origi-Storage_Hi-Res

Origi Storage

Origi Storage-DC is a high quality professional luminaire for low level warehouses, datacentres and parking garages, taking the lighting lifecycle to a new era. The design and philosophy of the luminaire makes it completely exceptional compared to any other luminaire on the market. With its long warranty, unlimited serviceability, heat resistance and stunning light output, Origi is the last luminaire you'll ever need to buy.

For the lighting designer and user, Origi provides high quality lighting with low glare, supporting visual efficiency, safety and flawlessness. The luminaire meets the highest requirements of the EN-12464-1 indoor lighting standard. The body of Origi is designed to be eternal and reusable and it is made of recycled aluminium, minimising environmental impacts.

  • origi_black
  • Key flagu_circle
New at

Area of use: low-rise warehouses, datacenters, parking garages, low-rise industry.
Installation:ceiling surface, suspension and hanging rail

Request a quote Downloadable files
What makes Orig exceptional?

Watch the video

The Origin philosophy is built to enable a more sustainable future. Instead of disposable luminaires, Origi offers a completely different option at no extra cost.
Download the Origi family product brochure

Benefits

Lifespan: Origi is the first professional luminaire designed to last forever without compromising on components. The Origi is the first product in the world to be designed without compromises in terms of energy efficiency (143-183lm/W), intelligence and optics, guaranteeing low kWh/m² results. L90/100 000 h and CLO allow the use of a low maintenance factor in lighting design, supporting efficient w/m² calculation according toEPBD.

Design.

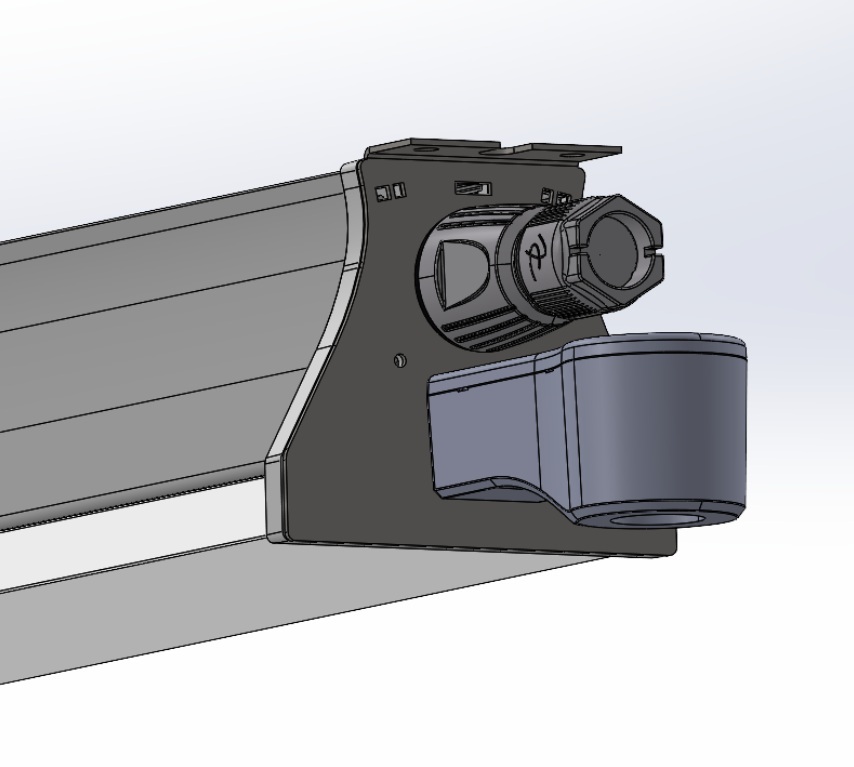

Luminaire-specific sensor: the luminaire with motion and presence detector has an NLC Bluetooth or Casambi sensor integrated in the end cap to improve wireless network coverage.

Maintainability: the luminaire is maintainable with Zhaga standard components by Greenled as well as by other lighting professionals. It is compatible with Zhaga Book 7 standard linear LED cards and optics, and all Zhaga Book 15 standard LED cards and optics . In addition, linear ballasts according to Zhaga Book 13 standard can be used with the luminaire. Serviceability and availability of spare parts are ensured by Zhaga Book 20 and Zhaga Book 25 standards.

DALI2 data supports intelligent power management (EPBD-SRI), and DiiA certified features (251, 252, 253) allow data storage, energy reporting, diagnostics (overvoltage and thermal) and predictive failure information 1000-5000 h before end of life (control management system support required).

Price and warranty: despite its superior life cycle, Origi is very price competitive compared to any similar product.

Applicability

For sites where quality and ease of maintenance are important. Origin' s serviceability enables a radical reduction in property maintenance costs, as well as comfort. The luminaire is available in 2 different lengths.

Installation. Luminaire connection from the end with quick connectors, through-wiring with quick connectors, pre-wired.

Origi is suitable for both wireless and wired control.

Variants

Model Type code Power Luminous flux Luminaire efficacy Lifetime Operating temperature
Origi Storage 1200 GLORST12017 17 W 3074 lm 183 lm/W L90B50 > 100 000h, C10 100 000h -25 - +55°C
Origi Storage 1200 GLORST12025 25 W 4434 lm 179 lm/W L90B50 > 100 000h, C10 100 000h -25 - +55°C
Origi Storage 1200 GLORST12033 33 W 5747 lm 173 lm/W L90B50 > 100 000h, C10 100 000h -25 - +55°C
Origi Storage 1200 GLORST12051 51 W 8185 lm 161 lm/W L90B50 > 100 000h, C10 100 000h -25 - +50°C
Origi Storage 1200 GLORST12072 72 W 10728 lm 150 lm/W L90B50 > 100 000h, C10 100 000h -25 - +50°C
Origi Storage 1200 GLORST12085 85 W 12184 lm 143 lm/W L90B50 > 100 000h, C10 100 000h -25 - +45°C
Origi Storage 1800 GLORST18052 52 W 8988 lm 173 lm/W L90B50 > 100 000h, C10 100 000h -25 - +55°C
Origi Storage 1800 GLORST18066 66 W 11056 lm 167 lm/W L90B50 > 100 000h, C10 100 000h -25 - +55°C
Origi Storage 1800 GLORST18095 95 W 14799 lm 155 lm/W L90B50 > 100 000h, C10 100 000h -25 - +50°C
Origi Storage 1800 GLORST18126 126 W 18275 lm 145 lm/W L90B50 > 100 000h, C10 100 000h -25 - +45°C

Dimensions

Model Type code Length (L) Height (H) Width (W) Weight
Origi Storage 1200 GLORST12017 1210mm 95mm 110mm 3,8 kg
Origi Storage 1200 GLORST12025 1210mm 95mm 110mm 3,8 kg
Origi Storage 1200 GLORST12033 1210mm 95mm 110mm 3,8 kg
Origi Storage 1200 GLORST12051 1210mm 95mm 110mm 3,8 kg
Origi Storage 1200 GLORST12072 1210mm 95mm 110mm 3,8 kg
Origi Storage 1200 GLORST12085 1210mm 95mm 110mm 3,8 kg
Origi Storage 1800 GLORST18052 1790mm 95mm 110mm 5,3 kg
Origi Storage 1800 GLORST18066 1790mm 95mm 110mm 5,3 kg
Origi Storage 1800 GLORST18095 1790mm 95mm 110mm 5,3 kg
Origi Storage 1800 GLORST18126 1790mm 95mm 110mm 5,3 kg
Comments on

All values at +25°C ambient temperature, CCT 4000K, CRI 80, luminous flux +-10% tolerance, power +-10% tolerance. The luminaire is 10% CLO compensated. Please note LMS (lumen maintenance factor).

Overview

Colour temperature
3000, 4000, 5000K (1

Colour rendering index
RA≥80

Light source protection
PMMA

Enclosure class
IP44 (option IP65)

Corrosion resistance
C5H (100% RST/anodized)

Supply voltage:
220-240 Vac

Frequency:
50-60 Hz

PF:
> 0.90

THD:
< 20%

Connection:
 1pc quick connector, 2pc quick connector through-wiring max 5*2,5mm2 DALI +/-. Connecting wires 3x1,5mm2 or 5x1,5mm2

Controllability:
DALI2data,On/Off(CLO), NLC+ PIR sensor, Casambi+ PIR sensor

Colour:
Aluminium

Body material:
Recycled aluminium



Guarantee:
5 years or 8 years, STUL guarantee 2 years. Luminaire-specific sensors 2 years or 5 years

Standard CLO (Constant Light Output).
CLO: the luminaire maintains the same light output throughout its 100 000h life. CLO programming 10%. All ON/OFF, DALI and wireless electronic ballasts.

Accessories (installation):

E1500191 Origi adjustable ceiling bracket, E1500187 Origi MEK bracket 50-80mm (RST), E1500198 Origi MEK bracket 80-120mm (RST), E1500200 Origi adjustable MEK 70mm bracket,E1500199 Origi adjustable MEK 110-120mm bracket, E1500196 Origi vertical cable bracket 3m, E1500195 Origi vertical cable bracket 5m, E1500201 Origi horizontal cable bracket

Notes:
1) SDCM ≤3

D_classD-labelled luminaire meeting the requirements of limited surface temperature (IEC 60598-2-24).



Attachments and downloads

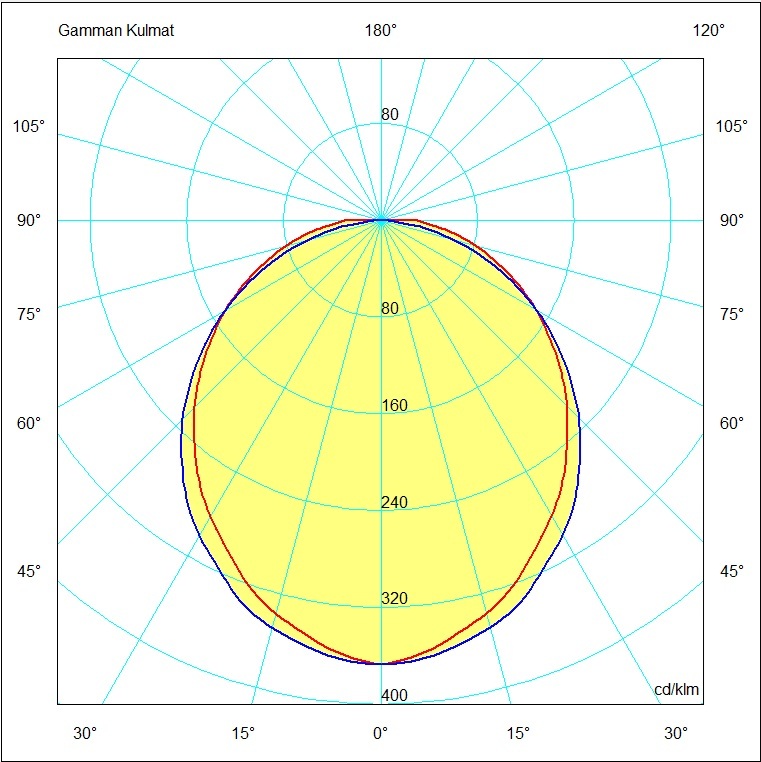

Light distribution
Origi Storage-DC C15 Wide Origi Storage C15 Wide

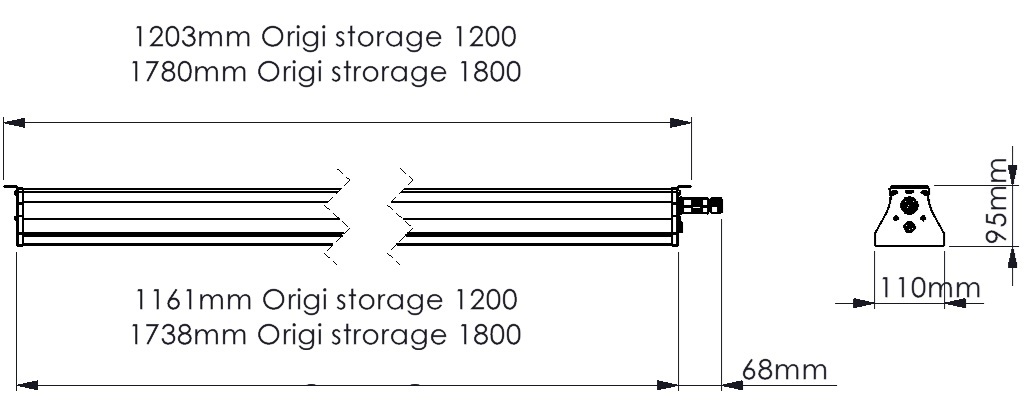

Dimensions
Origi Storage Origi storage measurements

Brackets
E1500187 Origi MEK bracket 50-80mm (RST) Origi MEK 50-80 ceiling canister
E1500198 Origi MEK bracket 80-120mm (RST) Origi MEK 100-120 ceiling canister
E1500191 Origi adjustable roof bracket Origi adjustable roof bracket
E1500200 Origi MEK adjustable 70 ceiling bracket Origi MEK adjustable 70 ceiling bracket
E1500199 Origi MEK adjustable 120 ceiling bracket Origi MEK adjustable 120 ceiling bracket
E1500201 Origi horizontal cable bracket E1500201 Origi horizontal cable bracket-1
E1500196 Origi vertical cable 3m Origi vertical cable 3m
E1500195 Origi vertical cable bracket 5m

Circuit breakers
B10 B16 B20 C10 C16 C20
14-35W 17 28 31 26 42 52
36-75W 14 23 25 21 34 43
76-130W 8 12 16 12 20 24
