Origi_Ramppicannake-B

Origi Retail







Origi Retail is a high quality professional luminaire for grocery stores that takes the life cycle of retail lighting to a new era. Its design and philosophy make it completely exceptional compared to any other luminaire on the market. With its long warranty, unlimited serviceability and stunning light output/energy efficiency, Orig is the last luminaire you'll ever need to buy. Available in white or black to match shop concepts. Origi retail is the first luminaire to bring more than 200 lm/W to the retail segment. In addition, wireless NLC solutions bring significant ease to store lighting control solutions.

For the lighting designer and the user, Origi offers high quality lighting with low glare, supporting visual efficiency, safety at work and flawlessness. The luminaire meets the highest requirements of the EN-12464-1 indoor lighting standard. The Origin body is designed to be eternal and reusable and is made of recycled aluminium, minimising the impact on nature.



  • origi_black
  • origi_black
New at

Area of use: Retail stores, big box stores & Shopping malls
Installation: ramp bracket, ceiling surface,suspension and hanging rail

Request a quote Downloadable files
What makes Orig exceptional?

Watch the video

The Origin philosophy is built to enable a more sustainable future. Instead of disposable luminaires, Origi offers a completely different option at no extra cost.
Download the Origi family product brochure

Benefits

Lifespan: Origi is the first professional luminaire designed to last forever, whose components have not been compromised. Energy efficiency (157-204lm/W), intelligence and optics, ensuring low kWh/m² results. L90/100 000 h and CLO allow the use of a low maintenance factor in lighting design, supporting efficient w/m² calculation according toEPBD.

Design.

Luminaire-specific sensor: Versions equipped with a motion and presence sensor, has an NLC Bluetooth or Casambi sensor embedded in the end cap for improved wireless network coverage.

Maintainability: the luminaire is maintainable with Zhaga standard components by Greenled and other lighting professionals. It is compatible with Zhaga Book 7 standard linear LED cards and optics, and all Zhaga Book 15 standard LED cards and optics . In addition, linear ballasts according to Zhaga Book 13 standard can be used with the luminaire. Serviceability and availability of spare parts are ensured by Zhaga Book 20 and Zhaga Book 25 standards.

DALI2 data support for smart homes (EPBD-SRI), and DiiA certified features (251, 252, 253) allow data storage, energy reporting, diagnostics (overvoltage and thermal) and proactive failure information 1000-5000 h before end of life (control management system support required).

Price and warranty: despite its superior life cycle, Origi is very price competitive compared to any similar product.



Applicability

Retail sites of all sizes, where there is a need to focus on quality and ease of maintenance. Origin' s serviceability allows for a radical reduction in property maintenance costs, as well as comfort. The luminaire is available in 3 different lengths.

Installation: ramp bracket, ceiling surface, pendant and suspension rail. Luminaire connection from the end.

Origi is suitable for both wireless and wired control.

Variants

Model Type code Power Luminous flux Luminaire efficacy Lifetime Operating temperature
Origi Retail 1200 GLORRE12024 24 W 4726 lm 194 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1200 GLORRE12032 32 W 6082 lm 187 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1200 GLORRE12049 49 W 8664 lm 175 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1200 GLORRE12070 70 W 11371 lm 163 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1200 GLORRE12084 84 W 13066 lm 156 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800 GLORRE18051 51 W 9621 lm 188 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800 GLORRE18066 66 W 11861 lm 181 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800 GLORRE18093 93 W 15737 lm 169 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800 GLORRE18125 125 W 19599 lm 157 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800R2 GLORRE1868 68 W 13645 lm 201 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 1800R2 GLORRE1873 73 W 14495 lm 200 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 2400 GLORRE24064 64 W 12164 lm 191 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 2400 GLORRE24093 93 W 16701 lm 180 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 2400 GLORRE24132 132 W 22161 lm 168 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retai 2400 GLORRE24184 184 W 28297 lm 154 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 2400R2 GLORRE24095 95 W 19326 lm 204 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C
Origi Retail 2400R2 GLORRE24179 179 W 32920 lm 184 lm/W L90B50 >100 000h, C10 100 000h 0 - +40°C

Dimensions

Model Type code Length (L) Height (H) Width (W) Weight
Origi Retail 1200 GLORRE12024 1210mm 78mm 106mm 2,9 kg
Origi Retail 1200 GLORRE12032 1210mm 78mm 108mm 2,9 kg
Origi Retail 1200 GLORRE12049 1210mm 78mm 108mm 2,9 kg
Origi Retail 1200 GLORRE12070 1210mm 78mm 108mm 2,9 kg
Origi Retail 1200 GLORRE12084 1210mm 78mm 108mm 2,9 kg
Origi Retail 1800 GLORRE18051 1790mm 78mm 108mm 4,2 kg
Origi Retail 1800 GLORRE18066 1790mm 78mm 108mm 4,2 kg
Origi Retail 1800 GLORRE18093 1790mm 78mm 108mm 4,2 kg
Origi Retail 1800 GLORRE18125 1790mm 78mm 108mm 4,2 kg
Origi Retail 1800R2 GLORRE1868 1790mm 78mm 108mm 4,2 kg
Origi Retail 1800R2 GLORRE1873 1790mm 78mm 108mm 4,2 kg
Origi Retail 2400 GLORRE24064 2365mm 78mm 108mm 5,5 kg
Origi Retail 2400 GLORRE24093 2365mm 78mm 108mm 5,5 kg
Origi Retail 2400 GLORRE24132 2365mm 78mm 108mm 5,5 kg
Origi Retai 2400 GLORRE24184 2365mm 78mm 108mm 5,5 kg
Origi Retail 2400R2 GLORRE24095 2365mm 78mm 108mm 5,5 kg
Origi Retail 2400R2 GLORRE24179 2365mm 78mm 108mm 5,5 kg
Comments on

All values at +25°C ambient temperature, CCT 4000K, CRI 80, light distribution wide, luminous flux +-10% tolerance, power +-10% tolerance. The luminaire is 10% CLO compensated. Please note LMS (lumen maintenance factor).

Overview

Colour temperature
3000, 4000, 5000, K (1

Colour rendering index
RA≥80 (option 90)

Light source protection
PMMA

Enclosure class
IP20

Supply voltage:
220-240 Vac

Frequency:
50-60 Hz

PF:
> 0.90

THD:
< 20%

Connection:
Chainable max 5*2.5mm2 OR max 3*2.5mm2 and DALI +/-.

DALI2 data,On/Off(CLO), NLC ecg(2, NLC+ PIR sensor, Casambi+ PIR sensor,

Colour: White effect surface RAL9003
(Option: Black effect surface RAL9005)

Body material:
Recycled aluminium



Guarantee:
5 years or 8 years, STUL guarantee 2 years. Luminaire-specific sensors 2 years or 5 years

Standard CLO (Constant Light Output).
CLO: the luminaire maintains the same light output throughout its 100 000h life. CLO programming 10%. All ON/OFF, DALI and wireless electronic control gears.

Accessories (installation):

E1500196 Origi vertical cable bracket 3m, E1500195 Origi vertical cable bracket 5m. E1500200 Origi adjustable MEK 70-80mm bracket. E1500199 Origi adjustable MEK 110-120mm bracket.

E1500216 Origi railbracket short white, E1500217 Origi railbracket short black, E1500215 Origi railbracket long white, E1500218 Origi railbracket long black, E1500230 Origi railbracket  0-45 degree long,white
E1500229 Origi railbracket  0-45 degree short, white
E1500232 Origi railbracket  0-45 degree short, black
E1500233 Origi railbracket  0-45 degree long, black

Enstone and Wago quick connect cables male and male/female

Notes:
1) SDCM ≤3

2) Not available for versions 1800 125W, 2400 132W,179W,184W



Attachments and downloads

Light distribution
Extra wide ( Available only for Origi Retail 1800 versions) Origi retail extra wide
Wide Origi retail wide
Asym Origi retail Asym
MP (Micro prism) Origi retail MP

Dimensions
Origi Retail Origi retail scale

Brackets

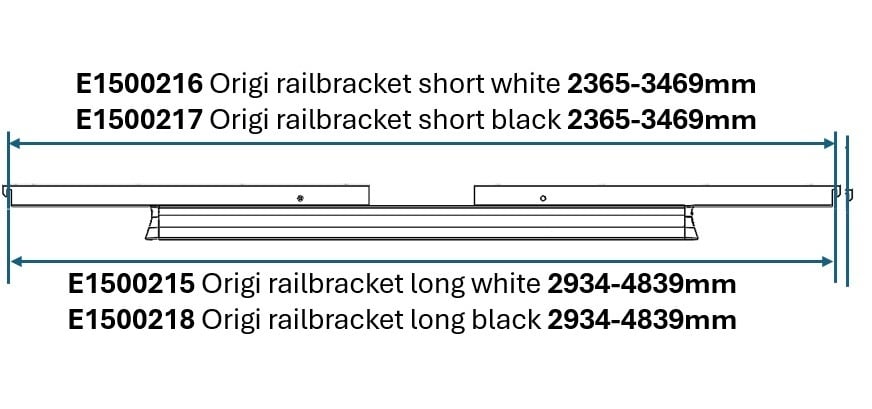

Origi railbracket 2365mm Origi ramp 2365mm-2

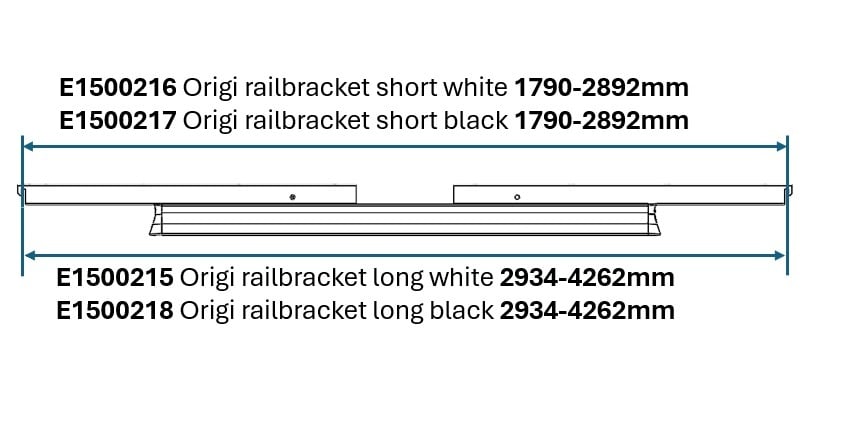

Origi railbracket 1790mm Origi ramp 1790mm

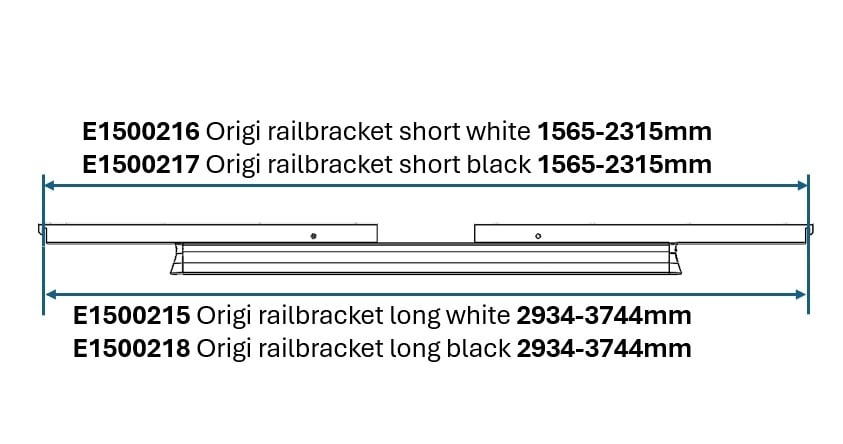

Origi railbracket 1210mm Origi ramp 1210mm
E1500208 Origi railbracket 45 degree part Origi 45 degree angle-1
E1500187 Origi MEK bracket 50-80mm (RST) Origi MEK 50-80 ceiling canister
E1500198 Origi MEK bracket 80-120mm (RST) Origi MEK 100-120 ceiling canister
E1500200 Origi adjustable MEK 70mm bracket Origi MEK adjustable 70 ceiling bracket
E1500199 Origi adjustable MEK 110-120mm bracket Origi MEK adjustable 120 ceiling bracket
E1500196 Origi vertical cable bracket 3m Origi vertical cable 3m
E1500195 Origi vertical cable bracket 5m Origi vertical cable 5m

Circuit breakers
B10 B16 B20 C10 C16 C20
14-35W 17 28 31 26 42 52
36-75W 14 23 25 21 34 43
76-151W 8 13 16 12 20 24
152-300W 7 11 13 11 17 20
