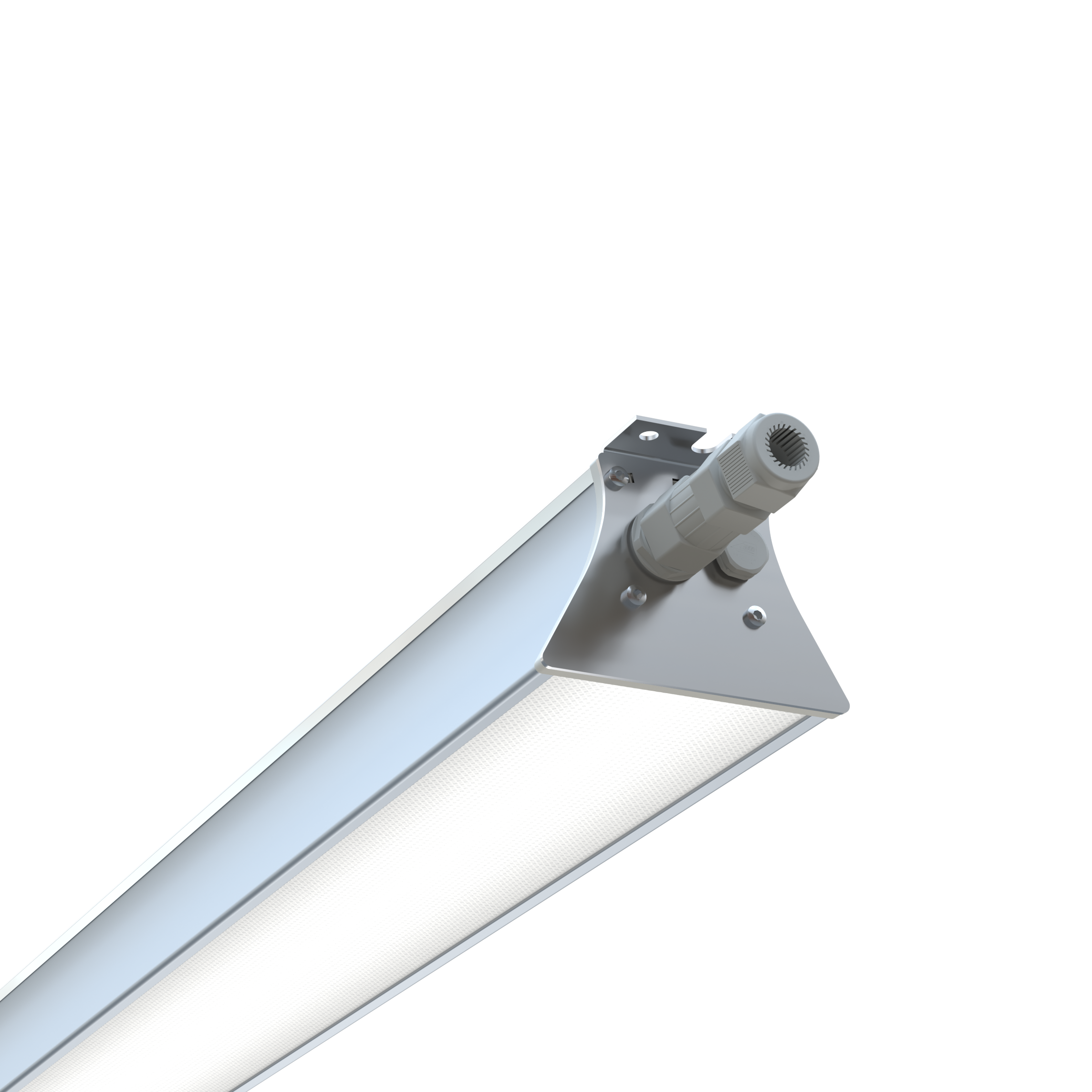

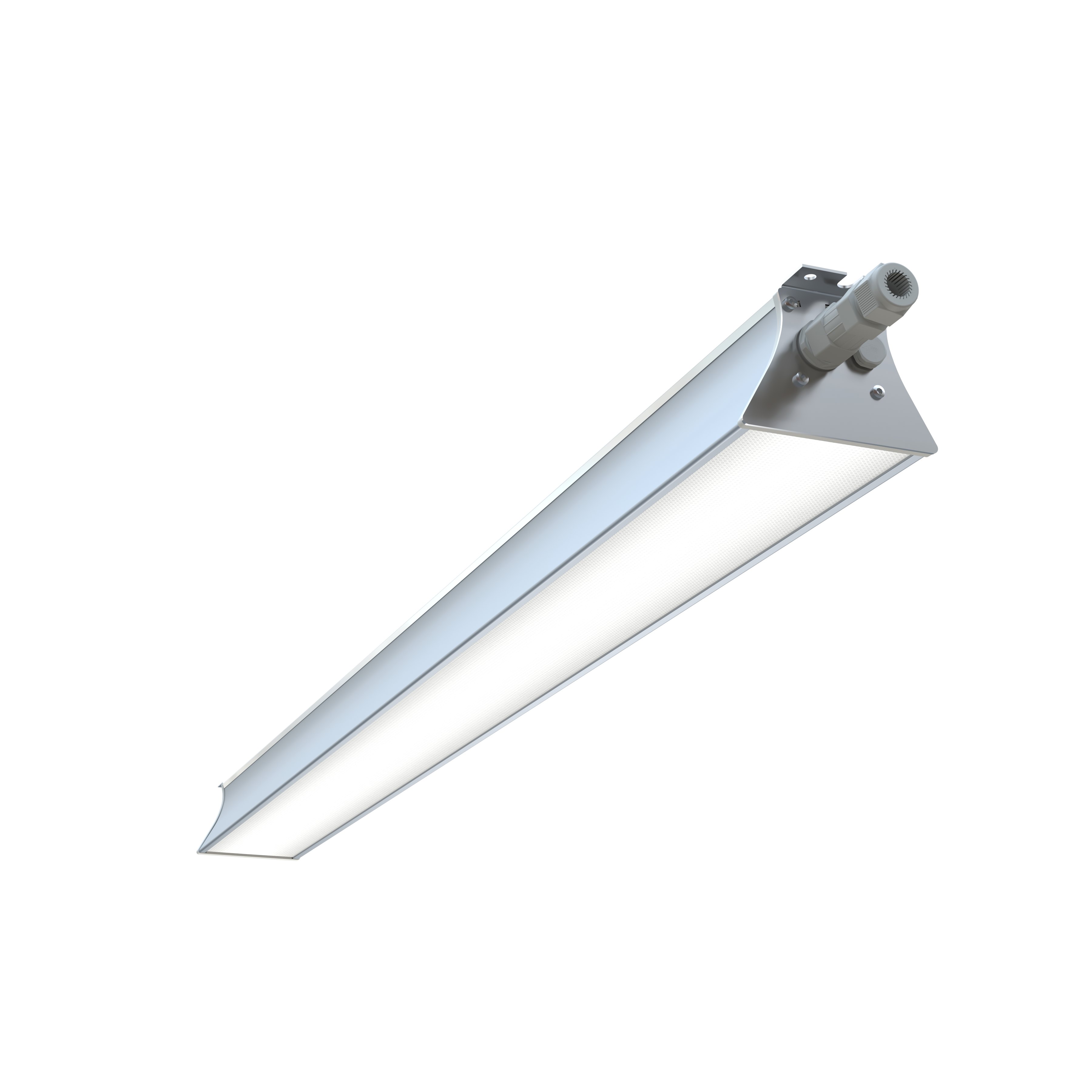

Origi_Clean-A_product Image_drawn

Origi Clean Industry







Origi Clean industry is a high quality professional luminaire for 2.5-6m high industrial, food industry and workplace lighting that takes the lighting life cycle to a new era. The design and philosophy of the luminaire makes it completely exceptional compared to any other luminaire on the market. With its long warranty, unlimited serviceability, heat resistance and stunning light output , Origi is the last luminaire you'll ever need to buy.



For the lighting designer and user, Origi provides high quality lighting with low glare, supporting visual efficiency, safety and flawlessness. The luminaire meets the highest requirements of the EN-12464-1 indoor lighting standard. The Origin body is designed to be eternal and reusable and is made from recycled aluminium, minimising the impact on nature.

  • origi_black
  • origi_black
New at

Range of use: 2.5-6m high industrial IP65 and task lighting. Optional IP66 food industry, pressure washable and corrosion resistant.
Installation: suspension, ceiling surface, light rail (no top cover) With top cover; suspension, ceiling surface and light rail. With top cover + gasket

Request a quote Downloadable files
What makes Orig exceptional?

Watch the video

The Origin philosophy is built to enable a more sustainable future. Instead of disposable luminaires, Origi offers a completely different option at no extra cost.
Download the Origi family product brochure

Benefits

Lifespan: Origi is the first professional luminaire designed to last forever without compromising on components. The Origi is the first electronic device to be designed without compromises in terms of energy efficiency (144-183lm/W), intelligence and optics, guaranteeing low kWh/m² results. L90/100 000 h and CLO allow the use of a low maintenance factor in lighting design, supporting efficient w/m² calculation according to EPBD.

Design.

Luminaire-specificsensor: the luminaire with motion and presence detector has an NLC Bluetooth or Casambi sensor integrated in the end cap to improve wireless network coverage.

Maintainability: the luminaire is maintainable with Zhaga standard components by Greenled as well as by other lighting professionals. It is compatible with Zhaga Book 7 standard linear LED cards and optics, and all Zhaga Book 15 standard LED cards and optics . In addition, linear ballasts according to Zhaga Book 13 standard can be used with the luminaire. Serviceability and availability of spare parts are ensured by Zhaga Book 20 and Zhaga Book 25 standards.

DALI2 data supports intelligent power management (EPBD-SRI), and DiiA certified features (251, 252, 253) allow data storage, energy reporting, diagnostics (overvoltage and thermal) and predictive failure information 1000-5000 h before end of life (control management system support required).

Price and warranty: despite its superior life cycle, Origi is very price competitive compared to any similar product.



Applicability

For sites where quality and ease of maintenance are important. Origin' s serviceability enables a radical reduction in property maintenance costs, as well as comfort. The luminaire is available in 2 different lengths. Note: TOP COVER and TOP COVER + Gasket are available separately for clean rooms. In addition, for demanding food industry applications pressure wash resistant IP66.

Mounting: without top cover; suspension, ceiling surface and luminaire suspension rail. With top cover; ceiling surface, suspension and light rail. In addition, ceiling surface + gasket. Connection of the luminaire from the end with quick coupling.

Origi is suitable for both wireless and wired control.

Variants

Model Type code Power Luminous flux Luminaire efficacy Lifetime Operating temperature
Origi Clean 1200 GLORCL12017 17 W 3074lm 183 lm/W L90B50 >100 000h, C10 100 000h -25 - +55°C
Origi Clean 1200 GLORCL12025 25 W 4434 lm 179 lm/W L90B50 >100 000h, C10 100 000h -25 - +55°C
Origi Clean 1200 GLORCL12033 33 W 5747 lm 173 lm/W L90B50 >100 000h, C10 100 000h -25 - +55°C
Origi Clean 1200 GLORCL12051 51 W 8185 lm 161lm/W L90B50 >100 000h, C10 100 000h -25 - +50°C
Origi Clean 1200 GLORCL12072 72 W 10728 lm 150 lm/W L90B50 >100 000h, C10 100 000h -25 - +45°C
Origi Clean 1200 GLORCL12085 85 W 12184 lm 143 lm/W L90B50 >100 000h, C10 100 000h -25 - +35°C
Origi Clean 1800 GLORCL18052 52 W 8988 lm 173 lm/W L90B50 >100 000h, C10 100 000h -25 - +55°C
Origi Clean 1800 GLORCL18066 66 W 11056 lm 167 lm/W L90B50 >100 000h, C10 100 000h -25 - +50°C
Origi Clean 1800 GLORCL18095 95 W 14799 lm 155 lm/W L90B50 >100 000h, C10 100 000h -25 - +50°C
Origi Clean 1800 GLORCL18126 126 W 18275 lm 145 lm/W L90B50 >100 000h, C10 100 000h -25 - +35°C

Dimensions

Model Type code Length (L) Height (H) Width (W) Weight
Origi Clean 1200 GLORCL12017 1161mm 78mm 108mm 3,8 kg
Origi Clean 1200 GLORCL12025 1161mm 78mm 108mm 3,8 kg
Origi Clean 1200 GLORCL12033 1161mm 78mm 108mm 3,8 kg
Origi Clean 1200 GLORCL12051 1161mm 78mm 108mm 3,8 kg
Origi Clean 1200 GLORCL12072 1161mm 78mm 108mm 3,8 kg
Origi Clean 1200 GLORCL12085 1161mm 78mm 108mm 3,8 kg
Origi Clean 1800 GLORCL18052 1738mm 78mm 108mm 5,3 kg
Origi Clean 1800 GLORCL18066 1738mm 78mm 108mm 5,3 kg
Origi Clean 1800 GLORCL18095 1738mm 78mm 108mm 5,3 kg
Origi Clean 1800 GLORCL18126 1738mm 78mm 108mm 5,3 kg
Comments on

All values at +25°C ambient temperature, CCT 4000K, CRI 80, luminous flux +-10% tolerance, power +-10% tolerance. The luminaire is 10% CLO compensated. Please note LMS (lumen maintenance factor).

Overview

Colour temperature
3000, 4000, 5000, K (1

Colour rendering index
RA≥80

Light source protection
PMMA (MP)(2 or PC (OP)(3

Enclosure class
IP65 (optional IP66)

Corrosion resistance
IP66 C5H (100% RST/anodised)

IK class
PC IK08, PMMA IK06

Supply voltage:
220-240 Vac

Frequency:
50-60 Hz

PF:
> 0.90

THD:
< 20%

Connection:
 1 pc quick connector, 2 pc quick connector chainable max 5*2,5mm2 OR max 3*2,5mm2 and DALI +/-.

Controllability:

DALI2 data,On/Off(CLO), NLC node, NLC + PIR sensor, Casambi + PIR sensor.

Colour:
Aluminium

Body material:
Recycled aluminium



Guarantee:
5 years or 8 years, STUL guarantee 2 years. Luminaire-specific sensors 2 years or 5 years

Standard CLO (Constant Light Output).
CLO: the luminaire maintains the same light output throughout its 100 000h life. CLO programming 10%. All ON/OFF, DALI and wireless electronic ballasts.

Accessories (installation):

Without TOP COVER, Standard end brackets. Accessories; E1500187 Origi MEK bracket 50-80mm (RST), E1500198 Origi MEK bracket 80-120mm (RST), E1500201 Origi horizontal cable bracket.

With TOP COVER; E1900059 Cover plate Origi 1151mm top cover. E1900065 Origi 1728mm top cover. E1500223 Origi MEK 70 End cap bracket, E1500224 Origi MEK 82 End cap bracket, E1500225 Origi MEK 110 End cap bracket, E1500226 Origi MEK 70 Adjustable End cap bracket, E1500227 Origi MEK 82 Adjustable End cap bracket, E1500228 Origi MEK 110 Adjustable End cap bracket

Comments:
1) SDCM ≤3

2) Does not shatter when broken, suitable for food industry. PMMA (MP microprism) Resistant to alkaline detergents and alcohol solutions.

3) PC (OP opal) IK class 08. Does not cause shattering when broken.

D_classD-marked luminaire that meets the requirements for limited surface temperature. (IEC 60598-2-24)



Attachments and downloads

Light distribution
Origi MP (Microprism) Origi retail MP

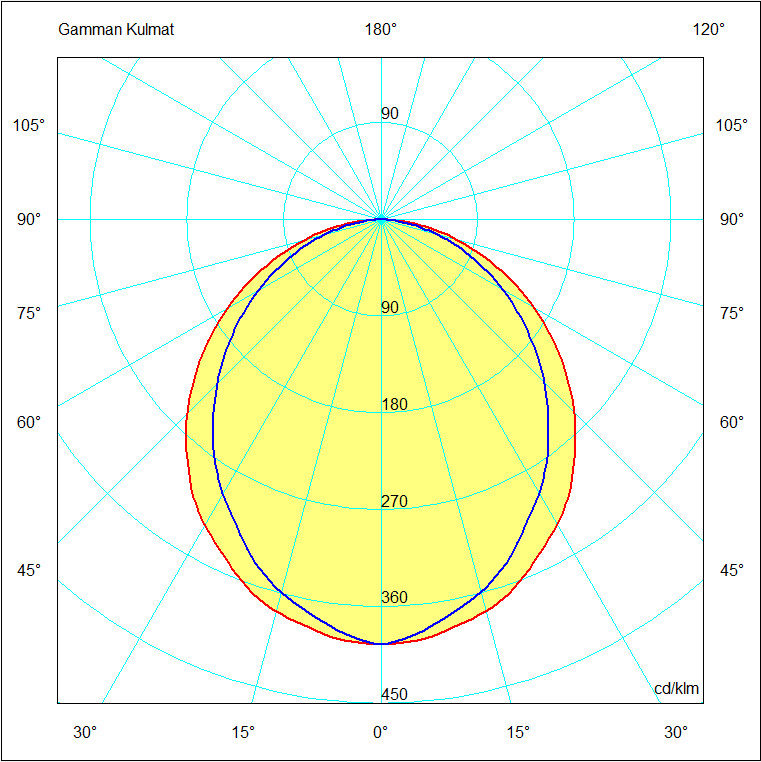

Origi OP (Opal) Light distribution opal OP

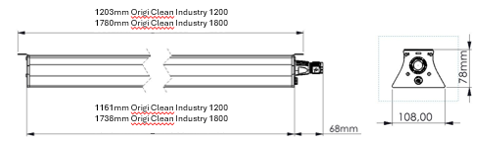

Dimensions
Origi Clean Industry mittakuva

Brackets
E1500187 Origi MEK-bracket 50-80mm (RST) Origi MEK 50-80 ceiling canister
E1500198 Origi MEK-bracket 80-120mm (RST) Origi MEK 100-120 ceiling canister

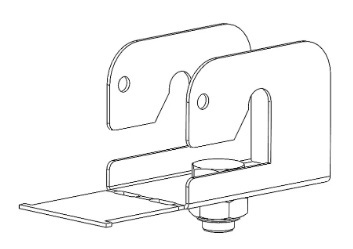

E1500201 Origi End cap horizontal wire bracket E1500201 Origi horizontal cable bracket-1

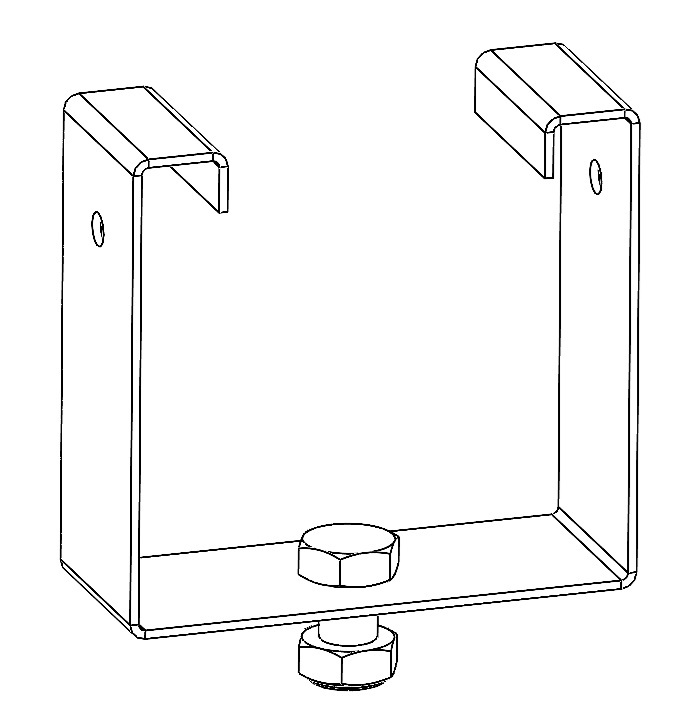

E1500223 Origi MEK 70 End cap bracket E1500223 Origi MEK 70 End cap bracket

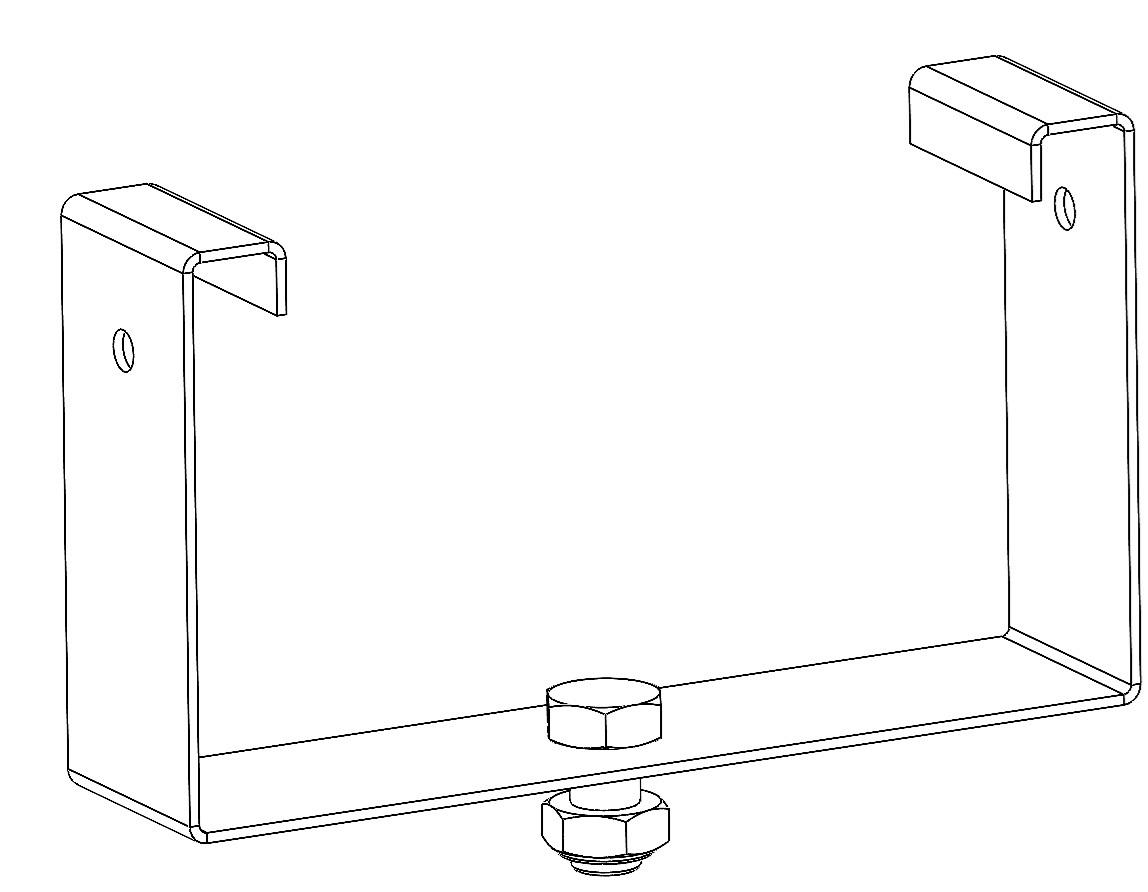

E1500225 Origi MEK 110 End cap bracket E1500225 Origi MEK 110 End cap bracket

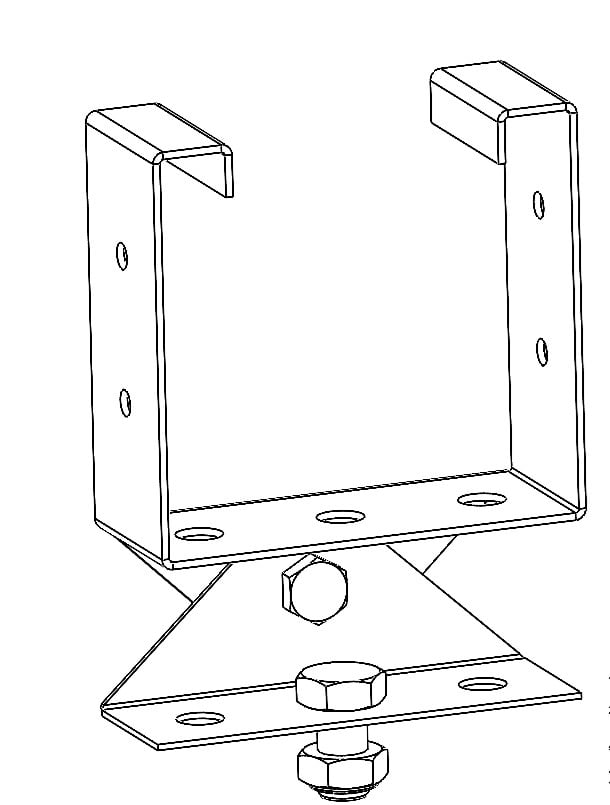

E1500226 Origi MEK 70 Adjustable end cap bracket E1500226 Origi MEK 70 Adjustable end cap bracket

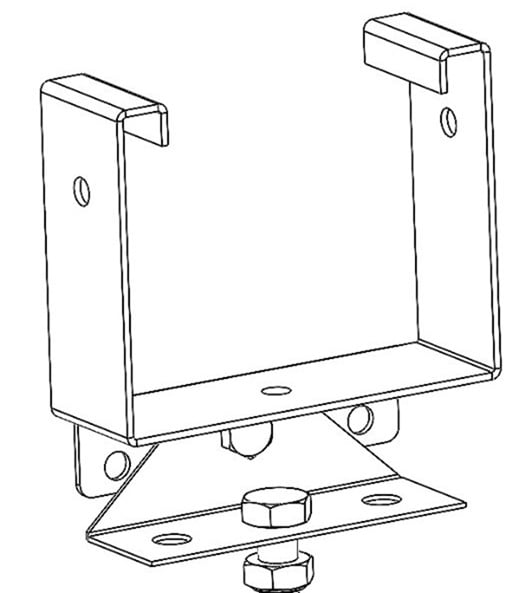

E1500227 Origi MEK 82 Adjustable end cap bracket E1500227 Origi MEK 82 Adjustable end cap bracket

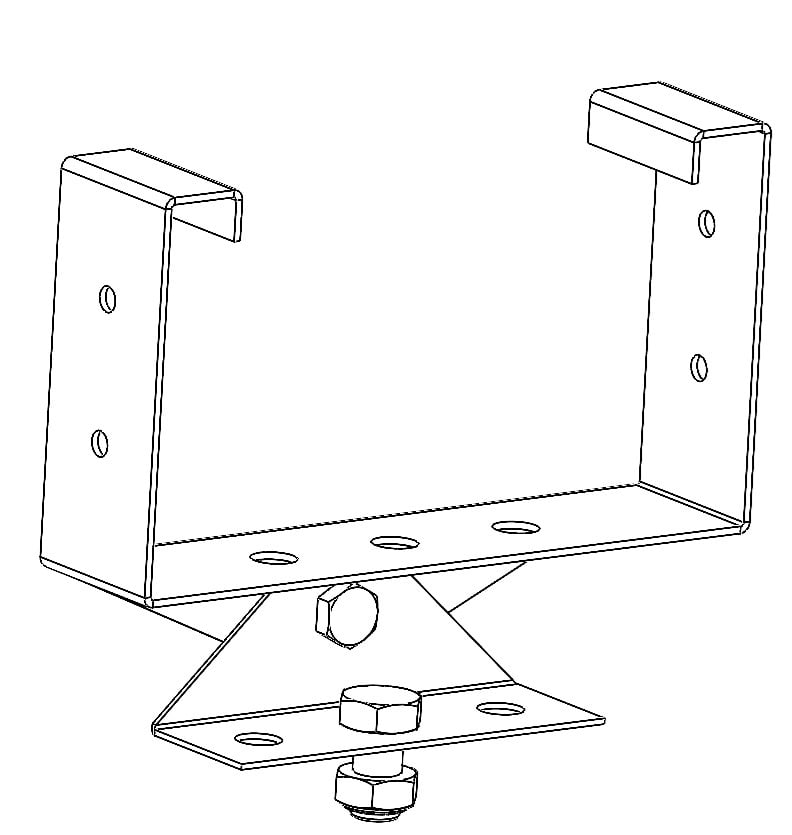

E1500228 Origi MEK 110 Adjustable end cap bracket E1500228 Origi MEK 110 Adjustable end cap bracket

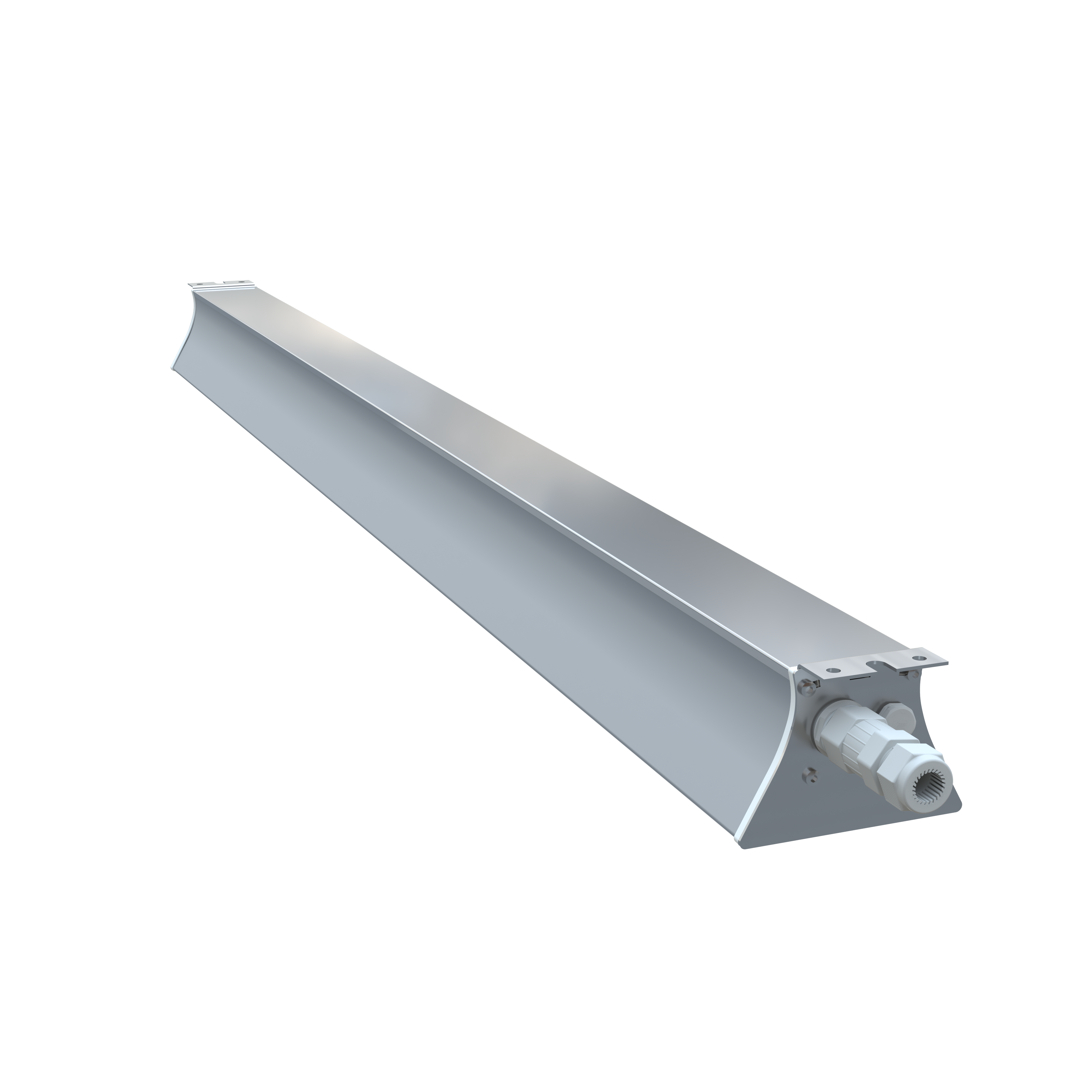

E 1900059 Cover plate 1151mm TOP COVER E 1900065 Cover plate 1728mm TOP COVERer Origi_Clean-B

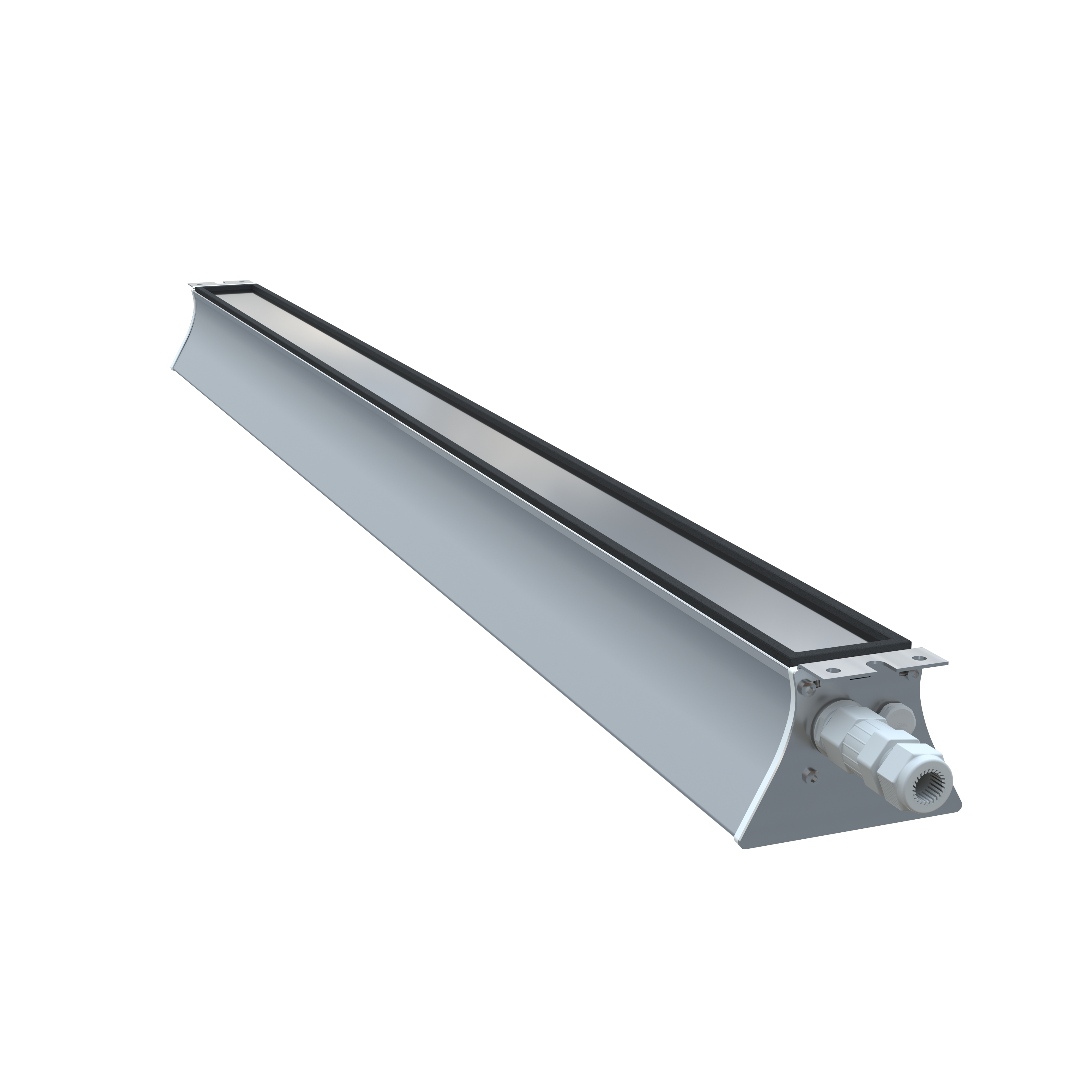

E1900059 Cover plate 1151mm TOP COVER+ gasket E 1900065 Cover plate 1728mm TOP COVER+ gasket holder Origi_Clean-C
